industrial powder grinder for gypsum kaolin calcite powder, 1,40year with ISO, 2,High Output, 3,High efficiency, 4,Energy-savin - details see: https://www.machineto.com/industrial-powder-grinder-for-gypsum-kaolin-calcite-powder-10314593

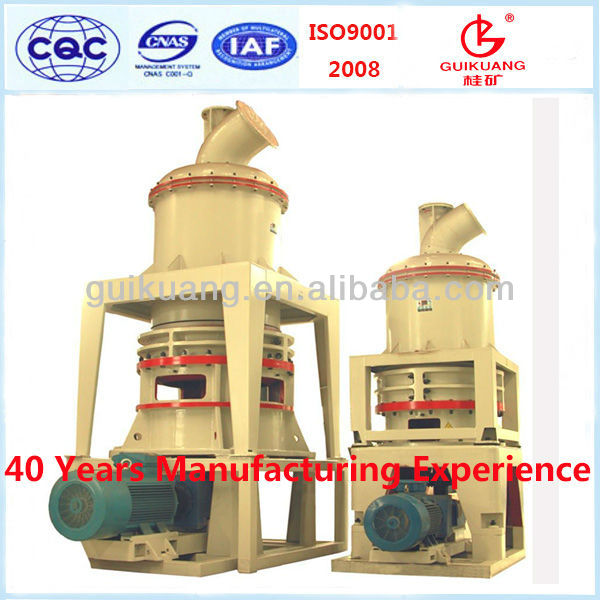

40 Years Manufacturing Experience Quality Gurantee ISO9001:2008 industrial powder grinder for gypsum kaolin calcite powder

Raymond Grinding Mill is suitable for non-flammable and non-explosive materials, with hardness less than7, with moisture less than 6%, such as, barite, limestone, ceramics, slag, gypsum, calcite, quartz, etc.The output fineness can be adjustable between 80-600 mesh.

Composition of the complete sets
The whole system of R series raymond mill consists of main unit, classifier, air blower, cyclone collector, pine device, feeder, dust collector, power- driven machine etc.

Features:

1, Strong Grinding Force:The grinding force of roll is increased by super spring device, each of which is raised by 500kg, so as to improve efficiency largely.

2, Expanding Grinding Area:The grinding area is expanded by heightening roll and ring from 160mm to 200 mm.

3, Strong ability of shoveling material: Adopting super large shovel blade to shovel as much as possible to the grinding area betweenthe roll and ring.

4, High Classification Accuracy:Super large classification turbine brings a higher passing rate and stronger airflow. In addition, the labyrinth seal between the edge surface of blade turbine and powder outlet decreases the short circuit powder.

5, Dual Cyclone Collector:The collecting efficiency is up to 80% and 10% higher than single cyclone collector.

6, Large Transmission Capability:Blower adopts high pressure centrifugal fan, which results in high air volume and pressure and improving the pneumatic conveying ability

7,The rest powder is collected by sack ,so the workshop will be clean.

Grinding Mill Main Technical Data:

Max Feeding Size	Product Fineness	Capacity	Central Shaft Speed	Inner Diameter of Ring	Grinding Roll Size (OD*Height)	Total Weight	Total Power
20 mm	80~600 mesh	1000~7000 kg/h	150 r/min	Φ970 mm	Φ320*200mm	14.7 t	97.5KW

Note: This specification is just reference, any changes are subject to the products.

All Types Grinding Mill Optional:

GK1720 Super-large Grinding Mill (80~600mesh,5.5~32t per hour)

GK1500 Improved Grinding Mill (80~600mesh,2.5~24t per hour)

GK1280 Improved Grinding Mill (80~600mesh,2~15t per hour)

5R4128 Improved Grinding Mill(80~600mesh,2.2~20t per hour)

5R4124 Improved Pendulum Grinding Mill (80~600mesh,2~18t per hour)

GYM 9720 High Pressure Grinding Mill (80~600mesh,1.5~7.5t per hour)

4R3220 High Pressure Grinding Mill (80~600mesh,1~7t per hour)

LG9920 Spiral Super-fine Grinding Mill(4 rollers)(80~1500mesh,1.2~2.5t per hour)

LG9920 Spiral Super-fine Grinding Mill(3 rollers)(600~1500mesh,1~2.2t per hour)

HGM Super-fine Ring-roll Mill (HGM-88 :3~35μm,0.5~3.5t per hour;HGM-188:3~35μm,0.8~5t per hour)

Many other R type closed and open circuit Raymond Grinding Mill are available.

Applicable Minerals for 4 Rollers Raymond Mill

Grinding Mill Operation Principle

Grinding Mill Assembly Structure

More Accessories and Processing Equipment about Guikuang Brand Pendulum Grinding Milling Machine

Cases:

5R4119 Installation Site in Nigeria

50.000 t Desulf urization Limestone Production Line

Attending Milling Machine Show:

China Machine Fair-Vietnam

Promotion Council for High Efficiency and Energy-saving Raymond Grinding Mill

Milling Machine Production Process:

Factory:

Certificate:

Thank you for taking the time to go through our Raymond Mill. If there areany question, inquiry or comments, please feel free to contact us as below:
