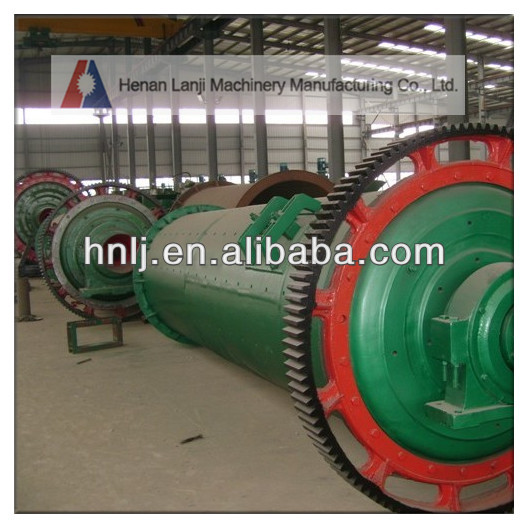

Energy saving explosion proof ball grinding mill for sale
| Condition:New | Type:Ball Mill | Motor Type:AC Motor | Power(W):30kw |
| Capacity(t/h):0.5-3 | Place of Origin:Henan China (Mainland) | Brand Name:Lanji | Model Number:900*2100 |
| Dimension(L*W*H):2100*900*550mm | Weight:5.5t | Certification:ISO9001 | Warranty:1 year |
| After-sales Service Provided:Overseas service center available | Color:As per required | Max feeding size:25mm | Adaptability:High |
| Price:Competive | Quality:Best | Business type:Manufacturer |
Energy saving explosion proof ball grinding mill for sale
Explosion proof ball mill Characteristic:
Explosion proof ball mill is an essential equipment in the produce of flammable and explosive material , it has characteristics of strong adaptability to raw material,high production capacity, good sealing, prevent dust outside leakage can continuous operation, easy to adjust the final fineness etc.
Explosion proof ball mill Working principle:
High pressure air put the raw materials enter the low speed rotating cylinder from the quill shaft ,raw materials lifted and ground with the grinding balls, rolling and grinding the material ,wind force the material out the discharge port as it reach a certain degree of fineness powder or will reflow to quill shaft grind again.
Explosion proof ball mill Application:
Explosion proof ball mill applicable for aluminum powder, magnesium powder, sulfur, and explosive raw material crushing .Use sealing feeding, compressed air transport and nitrogen protection of rare material to effectively prevent in grinding work accident.
Technical Data:
Model | diameter (mm) | length (mm) | speed(r/mm) | Feeding size (mm) | Discharging size (mm) | Ball load (t) | Motor | Output(t/h) | Weight (t) | |
| Model | Power (kw) | |||||||||
| Φ700×1200 | Φ700 | 1200 | 40 | ≤25 | 0.075-0.5 | 0.5 | Y180L-6 | 15 | 0.5-1 | 1.8 |
| Φ980×1800 | Φ900 | 1800 | 36 | ≤25 | 0.075-0.3 | 1.8 | Y200L2-6 | 22 | 0.5-2 | 4.5 |
| Φ900×2100 | Φ900 | 2100 | 36 | ≤25 | 0.075-0.2 | 2 | Y225M-6 | 30 | 0.5-3 | 5.5 |
| Φ1200×2400 | Φ1200 | 2400 | 32 | ≤25 | 0.075-0.3 | 4.5 | Y280M-8 | 45 | 1-4 | 13.5 |
| Φ1200×3000 | Φ1200 | 3000 | 32 | ≤25 | 0.075-0.2 | 5.2 | YR115-8 | 60 | 1-5 | 15 |
| Packaging Detail:standard and safe package for container or as per required |
| Delivery Detail:10--15 days after the confirmation of order |
