Top quality samll ball mill used for Silica Sand

Small ball mill:, 1.for ore, mining, ceramic, 2.wet or dry ball mill, 3.overflow or grate ball grinder, 4.rich experience - details see: https://www.machineto.com/top-quality-samll-ball-mill-used-for-silica-sand-10314810

Condition:New	Type:Ball Mill,small ball mill	Motor Type:AC Motor	Power(W):10-300 Kw
Capacity(t/h):0.65-2	Place of Origin:Henan China (Mainland)	Brand Name:LanJi	Model Number:900*1800
Dimension(LWH):6.01.51.3m	Weight:1-50T,3.6T	Certification:ISO9001	Warranty:2 years
feeding size:<20mm	Discharging size:0.075-0.089mm	capacity:1-80t/h	Grinding way:Wet or dry
Certificate:ISO9001:2000	Linner:Steel, rubber or slicon	Supply spare parts:Supply spare parts: for whole life	Colour:as request

Top quality samll ball mill used for Silica Sand:

1. Application:

Ball Mill is widely used in powder making production line in industries, like mining,building materials and chemistry industries. It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

2. Types:

a. dry and wet types.

b. lattice and overflow types, or center-discharge and side-discharge types

c. Bearing MiII and Bushing MiII

d. edge and center types

Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.

3. Working Principle:

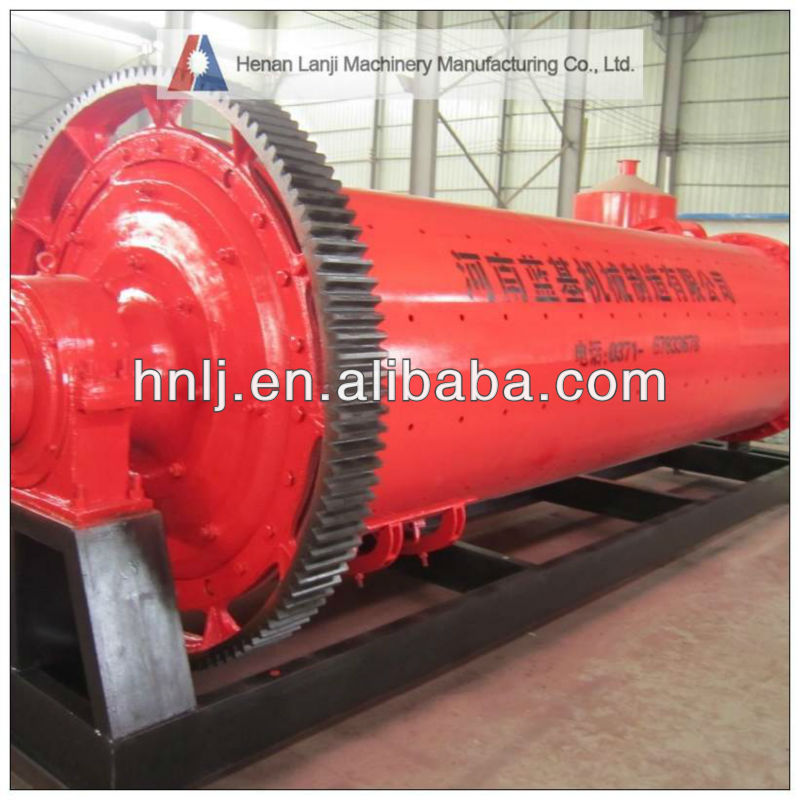

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

4.Technical Parameter:

Model	Drum rotary speed (r/min)	Feeding capacity (t)	feeding size (mm)	Discharging size (mm)	Output (t/h)	Power (kw)	Weight (t)
Φ900×2100	38	1.5	≤15	0.075-0.89	0.5-2	15	3.9
Φ900×3000	38	2.51	≤15	0.075-0.89	0.8-3.5	22	5.0
Φ1200×2800	32	4.0	≤20	0.074-0.4	1.0-5.0	30	9.5
Φ1200×3000	32	4.5	≤20	0.074-0.4	1.2-5.6	37	11.5
Φ1200×4500	30	5.5	≤20	0.074-0.4	1.5-6.0	55	13.6
Φ1500×4500	27	11	≤25	0.074-0.4	4-10	95	21
Φ1500×5700	27	12	≤25	0.074-0.4	4-13	110	23.5
Φ1830×3000	24	12	≤25	0.074-0.4	5-15	130	31
Φ1830×3600	24	13	≤25	0.074-0.4	5-16	130	32
Φ1830×4500	24	14	≤25	0.074-0.4	5-18	155	33.5
Φ1830×7000	24	21	≤25	0.074-0.4	6-20	210	36
Φ2100×3600	24	21	≤25	0.074-0.4	7-35	215	39.5
Φ2100×4500	24	26	≤25	0.074-0.4	8-42	245	43.5
Φ2200×3000	21	28	≤25	0.074-0.4	8-43	245	46
Φ2200×4800	21	35	≤25	0.074-0.4	9-45	285	48
Φ2400×3000	21	23	≤25	0.074-0.4	8-60	285	55
Φ2700×4500	21	48	≤25	0.074-0.4	12-83	475	79

Thanks so much for you taking time to browse our small ball mill. Any further questions, please feel free to contact us and we are ready to so service for you!
