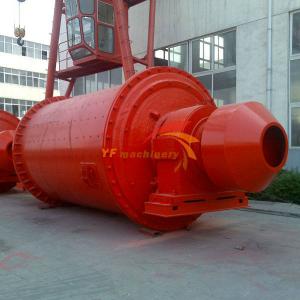

Energy Saving Ball Mill for black powder/ powder metallurgy ball mill

It can be used for grinding particles in the process of metal mineral resouces, such as gold, silver, iron, copper, lead etc. - details see: https://www.machineto.com/energy-saving-ball-mill-for-black-powder-powder-metallurgy-ball-mill-10314142
Condition:NewType:Ball Mill,wet and dry ball millMotor Type:AC MotorPower(W):75/110/132/160/185/210/220/250/280/315/355/400/450/500/560/630/710/800
Capacity(t/h):10-300Place of Origin:Henan China (Mainland)Brand Name:YufengModel Number:various
Weight:15.1/16/27.8/29.7/32.6/35.5/42.9/46.5/48/54/57/62.9/66.7/81.8/87/127Certification:ISO9001:2008Warranty:2 years (except the easy-damaged parts)After-sales Service Provided:Engineers available to service machinery overseas
color:as requiredinstall:based on engineer guidestandard:ISO9001:2008factory:welcome to visit
used in:cement,silicate,new building material,refractory material etc.HS code:84742020

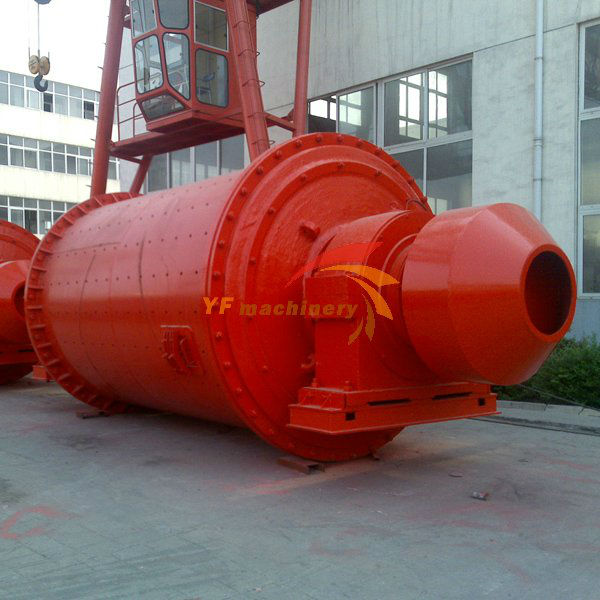

Energy Saving Ball Mill for black powder/ powder metallurgy ball mill
contact supplier for Energy Saving Ball Mill for black powder/ powder metallurgy ball mill


Introduction of Ball Mill:

Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Application of Ball Mill:

The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.

Ball Mill Working principle:

The ball mill is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.

Features and benefits of Ball Mill:

1.Double-row self-aligning spherical roller bearing replaces babbit-lined bearing. Friction resistance is greatly lowered down, easy to start and 20-30% of energy is saved.

2.Grooved and ringed liner increases contacting surface between balls and ores, improving milling effect and saving energy through its lifting effect to the materials.

3.All-in-one frame is used in middle-sized or small-sized machinery, facilitating engineering construction and equipment installation.

4.Large discharging outlet and high capacity,discharge coarse particles,usually used in first stage milling.

5.It can be used for grinding particles in the process of metal mineral resouces, such as gold, silver, iron, copper, lead, zinc etc., and non-metal mineral resources.



Ball Mill Main Technical Parameters:
Model
Drum size
Speed
Ball Weight
Feed size
Output size
Capacity
Power
Weight
(m)
(r/min)
(t)
(mm)
(mm)
(t/h)
(kw)
(t)
MQZ1224
1.2*2.4
31
4.8
0-20
0.074-0.6
0.4-6.8
37
13.43
MQZ1245
1.2*4.5
31
5.2
0-20
0.074-0.6
1.6-12
45
17.4
MQZ1530
1.5*3
27.5
8.1
0-25
0.074-0.4
2.9-16.5
65
18.6
MQZ1557
1.5*5.7
29.2
15
0-25
0.074-0.4
4-25
95
24.54
MQZ1645
1.6*4.5
27.5
14
0-25
0.074-0.4
4-24
95
26
MQZ1836
1.8*3.6
23.9
11
0-25
0.074-0.4
8-40
132
33
MQZ1864
1.6*6.4
23.9
18.5
0-25
0.074-0.4
8-60
155
35.6
MQZ2130
2.1*3
23.8
19.8
0-25
0.074-0.4
6.5-36
155
45
MQZ2136
2.1*3.6
23.8
27
0-25
0.074-0.4
8-61
155
46.8
MQZ2265
2.2*6.5
21.6
28
0-25
0.074-0.4
8-35
210
62
MQZ2430
2.4*3
22
22.5
0-25
0.074-0.4
7-92
210
67
MQZ2436
2.4*3.6
22
28
0-25
0.074-0.4
7-95
210
73
MQZ2465
2.4*6.5
22
36
0-25
0.074-0.4
7-110
260
76
MQZ2736
2.7*3.6
21.9
39
0-25
0.074-0.4
13-140
310
77
MQZ2745
2.7*4.5
21.9
43
0-25
0.074-0.4
13-150
320
91
MQZ2836
2.8*3.6
20
42
0-25
0.074-0.4
15-140
310
94.2
MQZ3060
3*6
19
70
0-25
0.074-0.4
100-145
630
155
MQZ3245
3.2*4.5
18.6
65
0-25
0.074-0.4
100-145
630
126
MQZ3260
3.2*6
18.6
86
0-25
0.074-0.4
120-150
800
176
MQZ3645
3.6*4.5
17.8
90
0-25
0.074-0.4
120-220
1000
159.7
MQZ3660
3.6*6
17.8
120
0-25
0.074-0.4
50-230
1250
189
Overflow ball mill
Model
Dia.
Length
Sength
Speed
Power
Output
Capacity
Weight
MQYZ1530
1500
3000
8.6
22.5-29.8
≤65
0.3-0.074
6-2.8
16.2
MQYZ2130
2100
3000
17.6
19-25.2
≤155
0.3-0.074
12.6-5.8
43.5
MQYZ2136
2100
3600
21
19-25.2
≤155
0.3-0.074
12.8-6
47
MQYZ2424
2400
2400
18.8
17.8-23.5
≤210
0.3-0.074
13.2-6.2
44
MQYZ2430
2400
3000
23
17.8-23.5
≤210
0.3-0.074
16.6-7.8
46.5
MQYZ2736
2700
3600
35
16.8-22.2
≤310
0.3-0.074
25-11.7
70
MQYZ2740
2700
4000
38
16.8-22.2
≤310
0.3-0.074
27.7-13
79
MQYZ3245
3200
4500
61
15.5-20.4
≤630
0.3-0.074
44-21.6
113
MQYZ3254
3200
5400
73
15.5-20.4
≤800
0.3-0.074
52.8-25.9
121
MQYZ3260
3200
6000
86
15.5-20.4
≤800
0.3-0.074
55.6-24.3
129
MQYZ3645
3600
4500
76
14.5-19.2
≤800
0.3-0.074
55.6-24.3
135
MQYZ3650
3600
5000
86
14.5-19.2
≤1000
0.3-0.074
67-28.1
145
MQYZ3660
3600
6000
102
14.5-19.2
≤1250
0.3-0.074
74.1-32.4
154

Energy Saving Ball Mill for black powder/ powder metallurgy ball mill
Packaging Detail:no packing
Delivery Detail:20 days after receipt payment
