coal mills, 1) Easy and safe operation, 2) Stable performance, 3) Even product size, 4) CE certificated - details see: https://www.machineto.com/coal-mills-coal-ball-mill-10314717

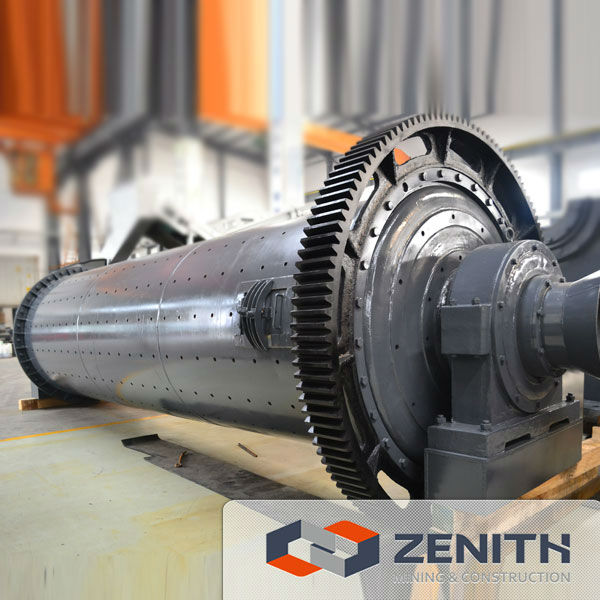

coal mills, coal ball mill

coal mills is an efficient tool for fine powder grinding. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. coal mills is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.

coal ball mill working process:

To use the coal mills , the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours. Obviously, the longer the Ball Mill runs, the smaller the powder will be. Ultimate particle size depends entirely on how hard the ground material is, and how long the Ball Mill runs. Our coal mills have been being used to grind glass, make ceramic glaze, powder various chemicals, and make Black Powder.

coal mills Features:

1) Easy and safe operation
2) Stable performance
3) Even product size
4) Low energy consumption
5 Low invest, high return

coal mills Technical Data:

pecification (Dia×Length)	Rotating speed (r/min)	Feed size (mm)	Capacity (t/h)	Grinding media load (t)	Main motor			Main reducer		Weight(t)
					Model	Power(kw)	Rotating speed (r.p.m)	Model	Reduction ratio
φ2.2×7	21.4	≤3	20~25	31	YR148-8	380	740	ZD70-9	5	49
φ2.2×13	21.6	≤25	33~37	58~60	YR630-8/1180	630	740	MBY630	5.6	53.4
φ2.4×13	21	≤25	45~50	65~70	YR800-8/1180	800	740	JDX710	5.6	131
φ2.6×13	20	≤25	45~46	80t(max)	YR1000-8/1180	1000	740	TDX800	6.3	153
φ6.2×6.4	18.5	≤25	32~41	86~90.5	TDMK1000-36	1000	740			134
