calcium carbonate grinding plant:, 1 Simple structure., 2 Easy maintenance., 3 Stable performance., 4 Even final particles - details see: https://www.machineto.com/sbm-calcium-carbonate-grinding-plant-mtm-grinder-machine-grinding-mill-of-ce-10314820

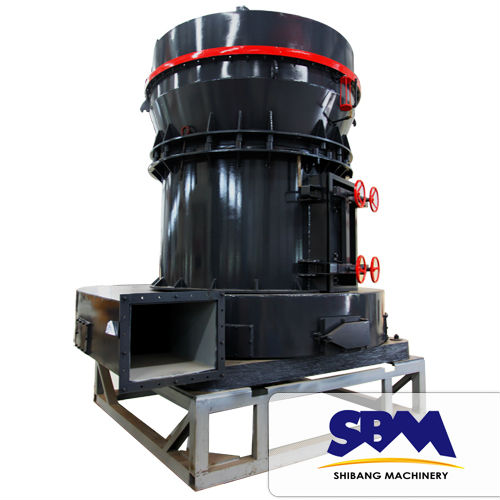

SBM calcium carbonate grinding plant

As micro ground calcium calcium carbonateate powder plays an important role in many industries from agriculture to light and heavy industries, so the calcium calcium carbonateate grinding mill plant is necessary and useful. We can manufacture and install complete grinding line for obtaining micro Calcite (CaCO3) powder from 600 micron till 1micron according to the request of the customer.

calcium carbonate grinding equipment

The calcium calcium carbonateate grinding system usually contains one of the Ball Mill, LM series Vertical Shaft Mill, Raymond Mill, Trapezium Mill, Coarse Powder Mill, Ultrafine Mill, etc. for different usage, the system also equip with deceleration machine, blower, hammer crusher, dustpan elevator, impulse dust cleaner, piping device, cyclone collector device, classifier, high-pressure motor and muffler and so on.

1,When the large calcium calcium carbonateate is fed into ball mill, it will be ground and the grain size can is between 0.074mm and 0.4mm, in normal, this final calcium calcium carbonateate can not meet the required size of industries.

2,Then the grain size will be collected can transferred to next grinding machine such like MTM trapezium mill, MTW trapezium mill. Then the grain size will meet most of the application.

3,But for some extreme application, the grain size of 0.04mm is still larger, then our ultrafine mill will take effect. The ultrafine mill can grind the grain size into particles between 325 meshes to 2500 mesh.

MTM Medium Speed Mill application of a number of the latest national patented technology, novel design, rational structure, small footprint, low power consumption, long life of operation, and low cost of wearing parts and high performance. Its technical performance has reached world-class advanced level.

Super Pressure Trapezium Mill Uses:

At present the T-shaped grinding mill has been widely used in electric power, mining, metallurgy, chemical industry, iron and steel, building materials, coal and other industries, resulting in huge economic and social benefits. It is mainly used for Mohs hardness below 9.3 and humidity below 6% of the various non-inflammable and explosive mineral materials, finished product fineness can be 30 -- 400 mesh of arbitrary regulation. As the Super Pressure Trapezium Mill full consideration in the design of milling needs of desulfurization, so it is perfect to match with the desulphurization equipment, thereby enhancing desulfurization efficiency, so it has become the preferred milling desulfurization equipment at home and abroad.

MTM mill work principle:

The host drive the central axis of rotation through reducer, the upper of drive shaft connecting the plum frame, on the frame have roller devices and form a swing pivot. Not only roller device rotating around the central axis, but also around the grinding ring revolution, roller itself is a result of friction and rotation. Under the plum frame equipped with a shovel knife system, its location is in the lower roller, shovel blade and the roller take the materials into the grinding ring between revolution, the material layer will be crushed materials by the outward centrifugal force generated by grinding rollers rotate (ie, extrusion pressure), and then to achieve the purpose of grind powder.

Specification:
