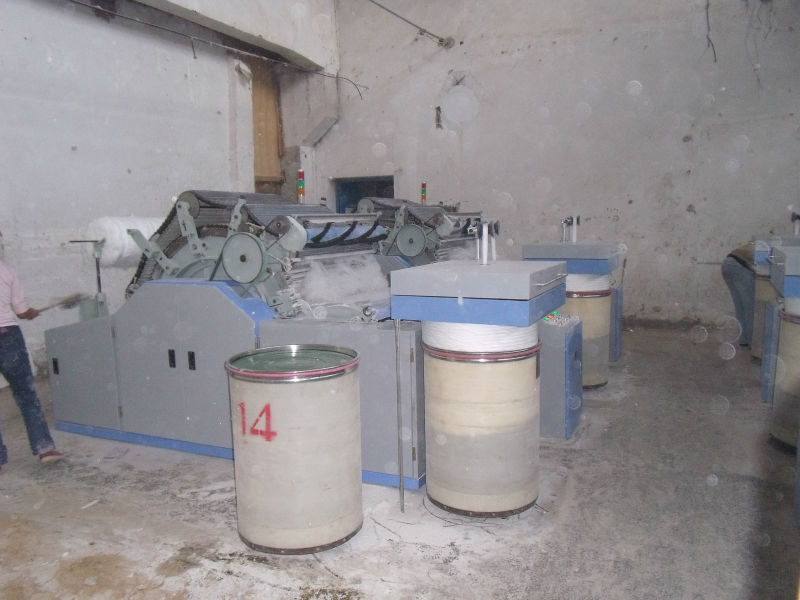

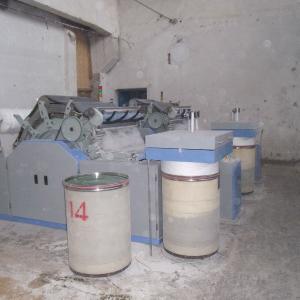

Textile Machine High Speed Carding Machine

FA203A textile machinery carding machine, 1. Practical Function, 2. Aesthetic design - details see: http://www.machineto.com/textile-machine-high-speed-carding-machine-10279237
Condition:NewType:WoolPlace of Origin:Shandong China (Mainland)Brand Name:ZD
Model Number:FA203AVoltage:AS YOUR REQUESTPower(W):8.84KWWeight:5500KG
Dimension(L*W*H):LxW4468X2735mmCertification:ISO9001:2000Warranty:ONE YEARAfter-sales Service Provided:Engineers available to service machinery overseas
Textile Machine High Speed Carding Machine
contact supplier for Textile Machine High Speed Carding Machine


carding machinery FA203A

1. Chracteristics

Main features
Second-ranking microcomputer control and industrial touch screen display relevant parameters. But flat flowers by copying itself replaced brush roller on knife chop. Second-ranking special jig, high strength, easy adjustment, facilitating large leak bottom removal The machine adopts the factory itself design production of new rack. Second-ranking avoided wallboard closed-end round wallboard flowers. Second-ranking brand-new appearance design, the beauty is generous. Second-ranking cotton lap or cotton box to double feeding. 40 seconds cylinder brake itself. (the user chooses) organization The machine itself more and get some continuous suck. In Washington, and stop five test device. Hung back, enhance flat second-ranking, improve the cotton nets quality. Second-ranking tin remain fascinating questions, improve precision structure optimization design. Before and after the number of fixed flats and set second-ranking hung board. Second-ranking can observe the cotton net aprons guide cotton device.

Electric control
There are one imported invers in the electronic control cabinet of card FA203A .it contronic doffer's and feed motor's speed to make a stepless variable speed and run it at the rate,with a smooth speed up and down and a good brake performance,it is running steady and reliable. The imported display screen is erected on safety cover in the left front of maching, It can control each motor. It can display all data on dynamic technology and take an alarm for all faults and full-can status. Control center of whole machine is a imported programmable controller,which operates simply and reliably.

2. Main technical parameters

Technical specifications
ApplicableThe machine is suitable for fiber length 22 ~ 76 mm cotton, chemical fiber and its blending.
output80kg/h
sliver count3.5~6.5(kg/m)
feed weight400~1000(kg/m)
working width1000mm
total draft60~300
licker-in diameterφ250mm
licker-in speed756 833 942 1025r/min
771 800 872 949r/min

647 712 805 877r/min

doffer diameterφ706mm
doffer speed8.9~89r/min
cylinder diameterφ1288mm
cylinder speedcotton man made dibers344 379 429 467r/min
300 331 374 407r/min
no.of revolving32/86
flat speedinterval
Spinning fiber
82~338mm/n71~294mm/min
Additional cardingAfter the taker-in plate, plate, former fixed cover
Adjusted cylinder diameters for heightφ600,φ1000mm
1100,1200mm
Continuous aspirationair3500m3/h
Export static pressure (absolute value)>-920pa
Compressed air4~5kg/cm3
Air consumption0.01m3/h
Total installed power8.84kw
Main transmission motor5.5kw
Doffer transmission motor2.2kw
Cleaning roller motor0.37kw
Cleaning roller is flat flowers motor0.37kw
To cotton motor0.4 kw
Safety cover formThe fully closed
Area (long x width)4468×2735mm(φ600coiler)
4670×2120mm(φ1000coiler)
Machine net weight5500kg

Packaging Detail:as your request
Delivery Detail:20 days
