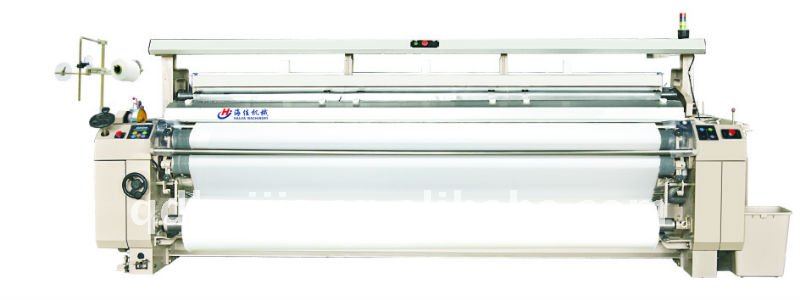

HJ851 series Water Jet Looms with ELO+ELU device&high performance

Certificate: CE, ISO, Technology: TSUDAKOMA, Nozzle numbers: from 1 to 4 pieces, Shedding system: Plain/Cam/Dobby shedding - details see: https://www.machineto.com/hj851-series-water-jet-looms-with-elo-elu-device-high-performance-10279171
Place of Origin:Shandong China (Mainland)Brand Name:HaijiaModel Number:HJ851technology:TSUDAKOMA
shedding system:plain/cam/dobbyfeeder:mechnical/electroniclet-off+take up:ELO+ELUpump:single/double
nozzle number:1 to 4 pieces or according to customer's demand
HJ851 series Water Jet Looms with ELO+ELU device&high performance
contact supplier for HJ851 series Water Jet Looms with ELO+ELU device&high performance


HJ851 series Water Jet Looms with ELO+ELU device&high performance

Features: New designed machine type from Driving system/ shedding system/let-off system/take-up system; Enlarged the specification;Excellent Anti-knocking feature; suitable for fabrics with High-grammage&High-density&Ultra-Heavy.

Main Technical Parameters:

Optional breadth: 150,170,190,210,230,260,280,300,340,360cm

According to customer's demand.

Weft insertion rate: most 2280 meter per minute

Speed: Design highest rev. 1200RPM(The actual speed determined in accordance with fabric specifications)

Number of Heddle Frame: Plain shedding: 2/4/6/8 pieces; Cam shedding: most 10 pieces; Dobby shedding: most 16 pieces.

Installed power: 1.5, 1.8, 2.2, 2.6, 2.8, 3.0, 3.5, 4.0, 4.5KW

According to customer's requirements.

Range of weft density: 5~60 thread per cm.

QINGDAO HAIJIA MACHINERY CO., LTD.

is the largest manufacturer ofWater Jet Loomsin China. Productions capacity is 800 sets monthly. Technology is same asTSUDAKOMA.

Our products obtained NO. 1 in continuous 8 years in domestic market.

We also can produce according to client's different configuration requirements.

We are the source,so, we can supply for products with super quality&competitive prices&fast delivery&good after-sales service.

URL:http://www.qdhaijia.comORhttp://www.waterjetloom.com

HJ851 series Water Jet Looms with ELO+ELU device&high performance
Packaging Detail:standard export packaging
Delivery Detail:according to order quantities
