Roller mill manufacturer

Roller mill manufacturer, 1.Reliable., 2.High capacity., 3.Low cost. - details see: https://www.machineto.com/roller-mill-manufacturer-10314719

Condition:New	Type:Other,Mill	Capacity(t/h):Various	Place of Origin:Shanghai China (Mainland)
Brand Name:Zenith	Model Number:XZM	Certificate:ISO9001:2000	Application:Ore

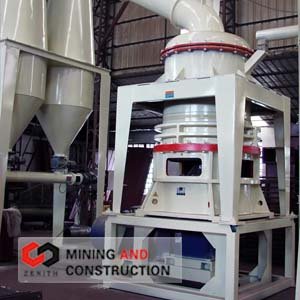

XZM Ultrafine mill is widely used in making fine powder or micro powder, a new kind of machine for producing fineness and ultra-powder. The size of the finished production can be adjusted between 325-2500 mesh.

Features:

1. Reliable
2. High capacity and low cost
3. Easy adjustment of product fineness
4. Clean, environmental protection

It is mainly used for grinding the material with middle and low hardness, below 6% moisture, and the material should be non-explosion and non-flammability, such as: calcite, chalk, limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite, iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassium ore pumice, etc.

Ultrafine mill Technical Data:

Tab 1:
item	XZM215	XZM221	XZM227
Number of roller(piece)	15	21	27
Ring diameter(mm)	Φ600	Φ 800	Φ1000
Number of ring (piece)	2	2	2
main equipment rotate speedr/min	235	235	235
Max. inlet sizemm	<10	<10	<10
Final size (mesh)	3252500	325-2500	325-2500
Capacitykg/h	350-2500	6004000	9006000
Overall sizem	10×2×5.5	12.4×2.5×5.8	14.5×3.8×6.3
Note: If there is any change of above specification, it is all according to the booklet with machine.
