WFJ-36 Lab Fine Pulverizer
| Condition:New | Type:Other,Pulverizer | Capacity(t/h):60-1000 | Place of Origin:Guangdong China (Mainland) |
| Brand Name:NOAH | Model Number:WFJ-36 | Dimension(L*W*H):9000*2200*400mm | Certification:GMP, CE |
| Warranty:1 year | Product name:Fine Pulverizer | Model:WFJ-36 | production capacity kg/h:60-1000 |
| diameter of materials outlet mesh:80-450 | diameter of materials inlet mm:15 | total power:38.85Kw | overall dimension:9000*2200*400mm |
WFJ-36 Lab Fine Pulverizer

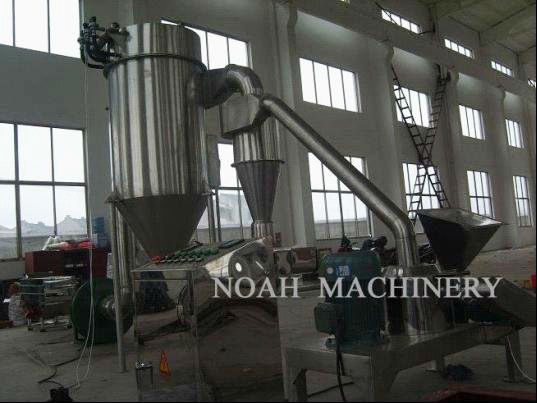

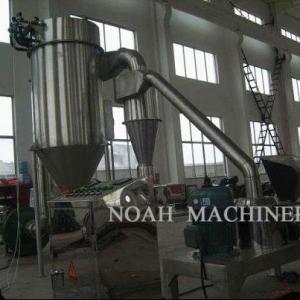

OurWFJ-36 Lab Fine Pulverizerconsists of three parts i.e. main machine, auxiliary machine and electric control.
Its features are compact in design, reasonable in structure. Its principle in using air to choose and no sieve or screen.
Being installed grading mechanism inside the machine, the crushing and grading can be finished at the same time. The transportion under negative pressure make heat produce from the chamber continuously when crushing. Therefore it can also be suitable for crushing thermal sensitive raw materials. The scope of application of machine is wide. Its productive process is continuous and its size of granule can be adjusted.
It can crush and grade many raw materials such as chemicals, foodstuff, medicines, cosmetic, dyestuff, resin, shell materials and so on.
Technical Parameters:
| specification and model | WFJ-15 | WFJ-18 | WFJ-36 | WFJ-60 |
| production capacity kg/h | 10-200 | 20-450 | 60-1000 | 1000-1500 |
| diameter of materials inlet mm | 10 | 12 | 15 | 18 |
| diameter of materials outlet mesh | 80-320 | 80-450 | 80-450 | 80-450 |
| total power Kw | 13.7 | 19.07 | 38.85 | 65.2 |
| overall dimension L*W*H(mm) | 5410*1660*2500 | 5500*1800*3100 | 9000*2200*400 | 900*2700*5280 |
Nouya Machinery Companyis one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical,Chenical,food and so etc fields.
OurMain Productsare: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
The Headquarter is located in The beautiful,historical and culturalCity-Yangzhou.
Our production,examinaton and supervision are strictly following theISO9001 International Quality Systemand meet theCE Certification.
| Packaging Detail:plywood case |
| Delivery Detail:10 Working days |
