Ball Mill grinding media

Ball Mill:, 1. Established in 1958, 2. ISO9001:2008, 3. National Torch Project, 4. Export to 20 countries - details see: https://www.machineto.com/ball-mill-grinding-media-10314473

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18-110kw
Capacity(t/h):1-80t/h	Place of Origin:Zhejiang China (Mainland)	Brand Name:Tongli	Model Number:Various Ball Mill
Dimension(LWH):Customized	Weight:3-70t	Certification:ISO9001:2008	Warranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseas	Color:As required

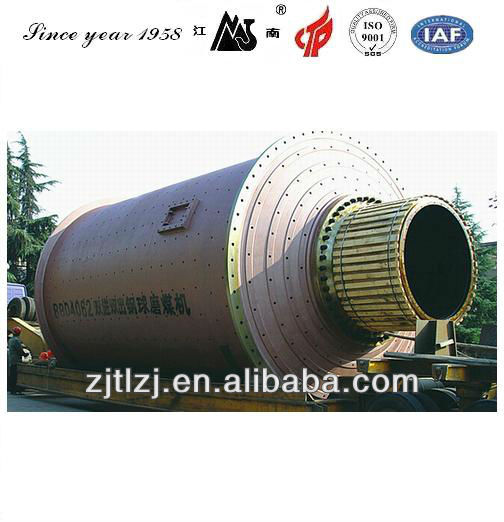

Ball Mill:

Ball mills are used extensively in the mechanical alloying process in which they are not only used for grinding but for cold welding as well, with the purpose of producing alloys from powders.The ball mill is a key piece of equipment for grinding crushed materials.It can grind various ores and other materials either wet or dry.

Ball mill main features and advantages:

1) Friction reducing

2) With excellent processing capacity

3) To improve working efficiently

Main technical parameters of ball mill:

Model	Speed of mill (r/min)	Weight of ball (t)	Size of feed opening (mm)	size of outputting feed (mm)	Production (t/h)	Power (kW)	Weight (t)
Φ900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Φ900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
Φ1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
Φ1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
Φ1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
Φ1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
Φ2200×7500	21	33	≤25	0.075-0.4	16-29	380	56
Φ2200×9500	21	38	≤25	0.074-0.4	18-35	475	62

Since year 1958,company is equipped with more than 100 sets of heavy machinery manufacturing equipments,such as Φ5.3×18m(The lifting capacity is 200t)digital control horizontal lathe, large heat treatment of cylinder, Φ8.0m heavy hobbing machine, etc.
