JHM ball mill:, 1.no over-grinding, 2.narrow particle size distribution, 3.energy saving, 3.compact structure - details see: https://www.machineto.com/particle-size-concentration-jhm-ball-mill-10313884

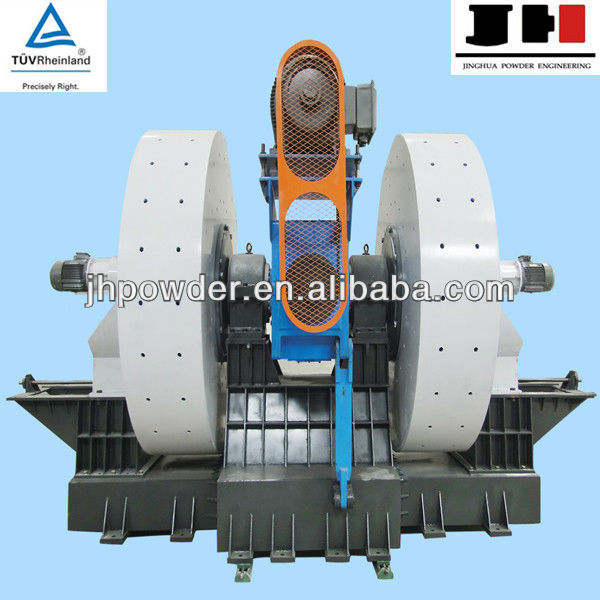

JHM Ball mill

JHM Air Classifier Ball mill developed by us is an up-to-date and patented grinder equipped with build-in classifying wheel, integrating the size reduction and classification.

Working Principle

The material to be ground fed into the grinding chamber of cylinder, is powdered by the grinding medium of tumble cylinder, the finished particle is immediately separated out for collection and the oversized is repulverized.

Feature

1.Integrating the size reduction and classification, the qualified product is gotten immediately, avoiding the over crushing.

2.Simple production technology process and compact structure, compared with traditional ball mill.

3.Unlike the common ball mill, application of directional blowback reduce the temperature in grinding chamber, suitable for heat sensitive materials, applied range is widened.

4.Negative system is free of dust.

Application

Batterymaterial, metal dust, abrasives, building materials, non-metal ores, final products with requirement of super purity and particle size in narrow distribution can be ground with alumina ball, and heat sensitive materials are available.

Ball mill technical Parameters

Parameters Type	Motor power(kw)	Classifier power(kw)	weight(t)	dimension(m) L*W*H	Fineness (d97=um)
JHMA1.8*0.5	22	2.2	7.5	4.85*2.7*2.2	2-100
JHMA2.2*0.5	45	3	10.48	4.85*2.98*2.42	2-100
JHMB2.2*0.5	75	6	18.8	9.2*2.98*2.42	2-100
JHMB3.0*0.5	200	15	34.2	10.5*3.38*3.2	2-100
JHMB3.5*0.5	250	30	47	10.5*3.63*3.72	2-100
JHMB4.0*0.5	355	44	67.5	11.4*4.6*4.21	2-100
JHMB4.5*0.5	500	74	83.8	11.4*5.1*4.72	2-100
JHMB5.0*0.5	630	90	112.5	12.4*6.8*6.21	2-100
JHMB6.0*0.5	1000	120	142.7	12.4*6.8*7.3	2-100
JHMB7.0*0.5	1600	180	178.9	12.4*8.1*7.3	2-100
JHMB8.0*0.5	2000	220	239.5	12.8*8.6*8.2	2-100
