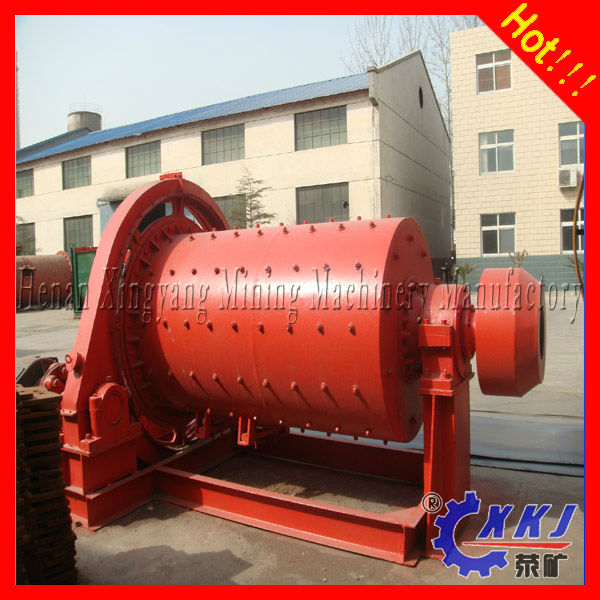

Ball mill for copper beneficiation plant
| Condition:New | Type:Ball Mill,Wet type ball mill | Motor Type:AC Motor | Capacity(t/h):0.2-70 |
| Place of Origin:Henan China (Mainland) | Brand Name:xingyang | Model Number:MQG | Application:Ore |
| Color:Red,grey,as per you requirement | Certificate:ISO9001:2008 | Material:Steel |
1. resistant-wear
2. good-looking appearance and surface-treatment
3. good quality welding jointing and sealing
4. short deliery time
Our ball mill's main advantages
1. Ball mill is our main key products. We often bid successfully.
2. Ball mill's manufacture technology is mature and advanced. With enough experience of working site and manufacture's we can give clients good solution about working flow and choice of machine's specification.
The ball mill working principle
Our ball mill is horizontal adopt edge driving, the cylinder rotated by operating of the gearwheel on the cylinder which driven by pinion and speed reducer. When cylinder rotates the steel ball in the cylinder make arch movement, then the steel ball fall down and crushed the material inside the cylinder. The material was discharged by the spiral drum after highly grinded.
Our ball mill's main technical parameter
| · Model | Diameter (mm) | Length (mm) | Rotating speed (r/min) | Motor (kw) | Ball weight (t) | Feed size (mm) | Capacity (t/h) | Weight (kg) |
| 1200x2000 | 1200 | 2000 | 35 | 30 | 2.81 | <25 | 1.1-2.5 | 7780 |
| 1200x2400 | 1200/900 | 2000/400 | 35 | 30 | 3.52 | <25 | 1.3-3.2 | 8650 |
| 1500x3500 | 1500/1200 | 3000/500 | 29 | 75 | 8.55 | <25 | 3.3-8.5 | 15636 |
| 1500x4500 | 1500/1200 | 4000/500 | 29 | 90 | 13 | <25 | 4.5-12 | 20000 |
| 1500x5700 | 1500 | 5700 | 29 | 110 | 15 | <25 | 2.6-14 | 25000 |
| 1830x4500 | 1830 | 4500 | 24 | 155 | 15 | <25 | 4-19 | 32000 |
| 2100x3600 | 2100/1800 | 3000/600 | 22 | 210 | 22.9 | <25 | 7.6-28 | 43454 |
| 2400x3600 | 2400 | 3600 | 17 | 320 | 32 | <25 | 8-38 | 47000 |
| 1830x7000 | 1830 | 7000 | 23.91 | 185 | 21 | <25 | 6-7 | 36500 |
| 2200x6500 | 2200 | 6500 | 21.4 | 380 | 31 | <25 | 14-15 | 50000 |
| 2200x7500 | 2200 | 7500 | 19 | 380 | 32.5 | <25 | 16-18 | 63000 |
| 2400x7000 | 2400 | 7000 | 17 | 475 | 38 | <25 | 26-30 | 70500 |
| 2700x3600 | 2700 | 3600 | 18 | 380 | 24.5 | <25 | 13-120 | 75500 |
| 3200x4500 | 3200 | 4500 | 18.6 | 800 | 65 | <25 | 75-100 | 155000 |
The ball mill is transporting to the beneficiation plant
| Packaging Detail:Standard packing for you |
| Delivery Detail:within 25 days after the S/C come into force. |
