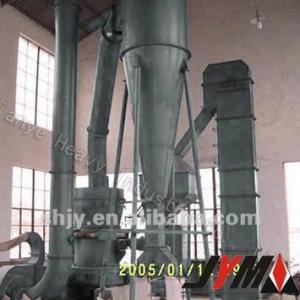

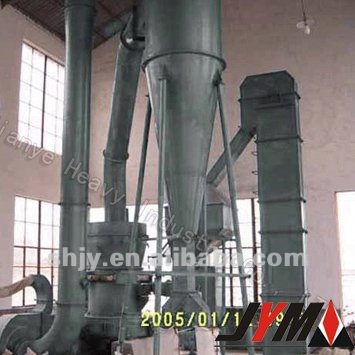

YGM grinding mill

1.ISO9001:2000, 2.Price:negotiable, 3.Capacity:0.8-20T/H, 4.Payment terms:L/C or T/T - details see: https://www.machineto.com/ygm-grinding-mill-10314731

Condition:New	Type:Raymond Mill	Capacity(t/h):0.8-20	Place of Origin:Shanghai China (Mainland)
Brand Name:shanghai jianye	Model Number:YGM series	Application:limestone, CACO3, talc,barite,granite etc all kind of mineral stone	Max feeding size:35mm
Certificate:ISO9001:2000	Guarantee:one year excluding wearing parts	Spare parts:supply for whole year	Installation:under our engineer's guide
After-sale service:for whole using life	Price:negotiation	Color:as per your requirement	Payment terms:T/T,L/C

Powder Mill Description

This high pressure micro-powder mill assimilates new technology of Germany and Japan; this machine has solved the classifying difficulty of micro powder. The product size is between 500 meshes (25 micron) and 2500 (5 micron) meshes.

The machine is used for grinding the barite, limestone, kaolin, ceramics, and slag, etc, below scale 6 of Mohs hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing.

Powder MillWorking Principle
Step with main shaft, bulk disk and roller bracket is driven by motor through reducer. Installed above bracket, roller assembly rotates with main shaft and swings freely meantime, this bring a large centrifugal force, which scatters bulk materials evenly in grinding intermediate layer between central roller and ring. The bulk materials are grinded into powder and fall on the bottom, and then discharged from discharging opening under the effect of synchronously-rotating scraper.

Powder Mill Technical Parameters

Code No.		YGM7826	YGM8327	YGM9531
Roller	No.	3	3	3
	Diameter (mm)	φ260	φ270	φ310
	Height (mm)	150	150	170
Ring	Diameter (mm)	780	830	950
Ring	Height (mm)	150	150	170
Feeding size(mm)		<25	<25	<15
Fineness of product( mm)		0.025-0.005	0.025-0.005	0.025-0.005
Capacity(kg/h)		50-500	65-670	100-1000
Power	Main	18.5	22	37
Power	Classifier	7.5	7.5	7.5
Overall	Length(mm)	4500	5300	7100
	Width(mm)	4200	4100	5900
	Height(mm)	5100	5200	7900
