wet discontinuous ball mills for sale, 1.ISO9001:2000, 2.get particle size 200 to 250 mesh, 3.mill glaze,mud,ceramic material - details see: https://www.machineto.com/wet-discontinuous-ball-mills-for-sale-10314307

wet discontinuous ball mills for sale

The series of ball mill is the discontinuous wet ball milling equipment,as fine grinding machine.In order to get the best effciency and economic benefit,the raw material should be milled in Secondary fineness of crushed state.It is suitable for not only ball milling of porcelain material ,but also ball milling of chemical ,metallurgy, mine and other industries.It has the advantages of compact structure,high efficiency and small granularity.It can be designed according to user's especial requirements.

Main Technical Parameters

Model	Size of tube(mm)	Effective volume(m3)	Rate of Material,ball,water	Material weight per mill(kg)	Rotation of tube(r/min)	Power(kw)	Net weight(kg)
TY2007x09	Ø750X900	0.4	1:(1.5-1.8):1	100	46	2.2	800
TY2009X10	Ø900X1050	0.67	1:(1.5-1.8):1	200	36	3	1000
TY2009X12	Ø940X1200	0.83	1:(1.5-1.8):1	300	35	4	1300
TY2012X12	Ø1220X1230	1.43	1:(1.5-1.8):1	500	30	5.5	1500
TY2016X17	Ø1600X1700	3.4	1:(1.5-1.8):1	1000	26	11	2200
TY2018X21	Ø1800X2100	5.3	1:1.5: 0.8	1500	23	15	3000
TY2019X21	Ø1900X2100	6	1:1.5: 0.8	2000	22	18.5	3500
TY2021X26	Ø2076X2600	8.8	1:1.5: 0.8	3000	24	30	4200
TY2025x29	Ø2500X2900	14.2	1:1.5: 0.8	5000	17	37	8500
TY2028X30	Ø2800X3000	18.5	1:1.5: 0.8	8000	16	55	12500
TY2028X34	Ø2800x3400	21	1:1.5: 0.8	10000	16	55	13000
TY2032x40	Ø3200X4000	32.2	1:1.5: 0.8	15000	13	90	18500
TY2032X51	Ø3200X5140	41.3	1:1.5: 0.8	20000	13	110	21000
TY2034X63	Ø3400X6350	57.6	1:1.5: 0.8	30000	12	132	29000
TY2036X70	Ø3600X7000	71.2	1:1.5: 0.8	40000	12	132	31500
TY2036X70B	Ø3600X7000	71.2	1:1.5: 0.8	40000	12	160	32500

ceramic ball mill manufacturer Pictures:

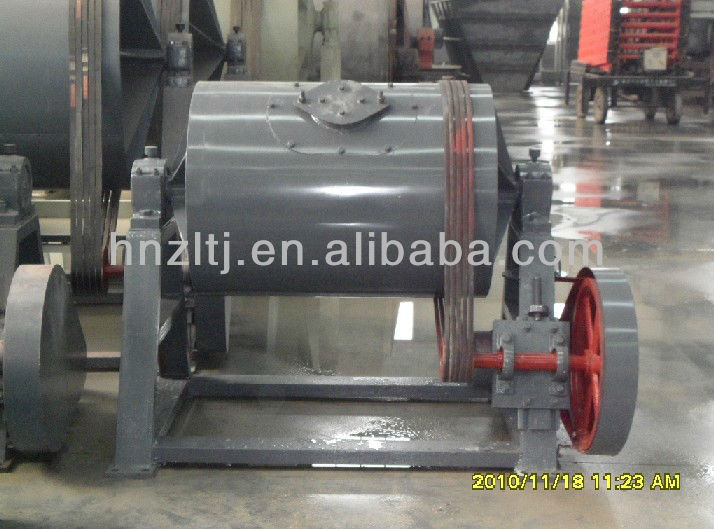

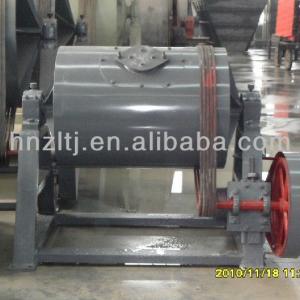

♥ Ball mill(small size )

♥Ball mill(Medium size)

♥Ball mill (large size)
