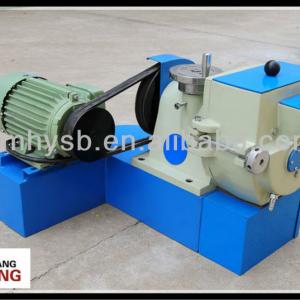

Lab Disc Mill For 6mm Coal Mill
| Condition:New | Type:Laboratory Disc Mill For Sample Preparation | Motor Type:AC Motor | Power(W):1.1kw |
| Capacity(t/h):6-20 kg per hour | Place of Origin:Jiangxi China (Mainland) | Brand Name:GUANGMING | Model Number:GM/F-150A |
| Dimension(L*W*H):520x380x360mm | Weight:95 | Certification:ISO CE | Warranty:12 working month |
| After-sales Service Provided:Overseas service center available | Application:coal, ore, alloy ect | Feeding size:≤6nn | Discharge size:0.175-0.074mm |
| Capacity:6-20kg/h | Dimension:520x380x360mm | Disc wheel material:alloy or tungsten carbide | Motor Power:1.1kw |
| Delivery time:15-35 working days | Power supply:380v/50HZ |
Lab Disc Mill For Coal Mill
A. Advantages:
1. Rapid grinding by friction force.
2. Full-sealed design and no dust pollution which meet environmental protection requirements
3. Low working noisy and easy for sample collecting.
4. It can work normally on the flat ground without fixing any base.
B. Typical applications:
It is suitable for grinding the dry or wet sample of any kind of hardness to analyzable fineness quickly
(Such as the departments of coal, metallurgy, nonferrous metals, chemical, building material,
geological and so on.)
C. Technical parameter:
GM/FΦ Series Disc Mill | |||
| Model no. | GM/FΦ-150A | GM/FΦ-175A | GM/FΦ-175B |
| Diameter of grinding discmm | 150 | 175 | 175 |
| Feeding size(mm) | ≤6 | ≤6 | ≤3 |
| Discharging size (mm) | 0.175-0.074 | 0.42-0.097 | 1-0.15 |
| Handling capacity (kg/h) | 20-6 | 35-10 | 25 |
| Dimension (mm) | 390×515×360 | 550×490×365 | 600×714×425 |
| Total weight (kg) | 95 | 130 | 100 |
| Motor power (kw) | 1.5 | 1.5 | 1.1 |
| Working power supply (V) | 380 | ||
D. Disc wheel material:
1. Alloy disc wheel
2. Tungsten carbide disc wheel

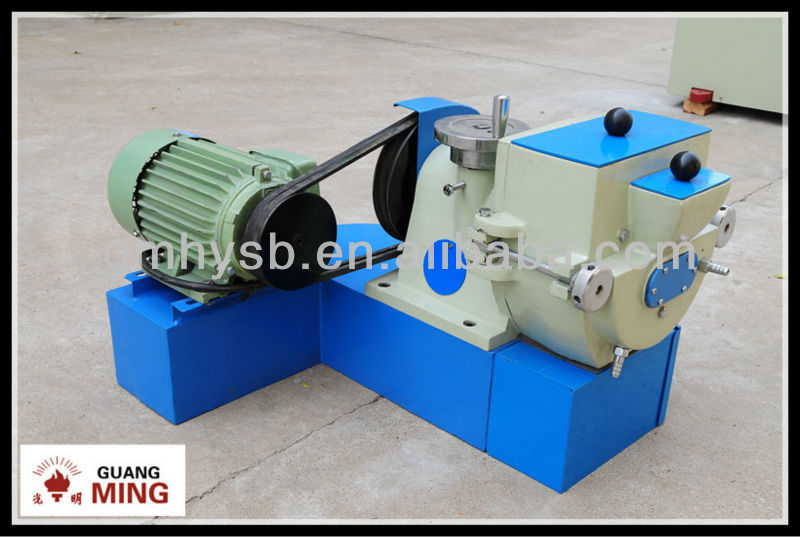

E. Guangming Disc mill for coal mill details:
Guangming--the lab sample preparation and analysis equipment supplier more than 30 years.
Warmly welcome you to visit our factory!!
Guangming Factory Show
| Packaging Detail:Plywood case with export standard |
| Delivery Detail:30 days |
