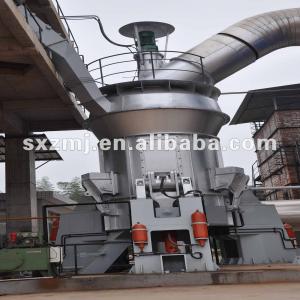

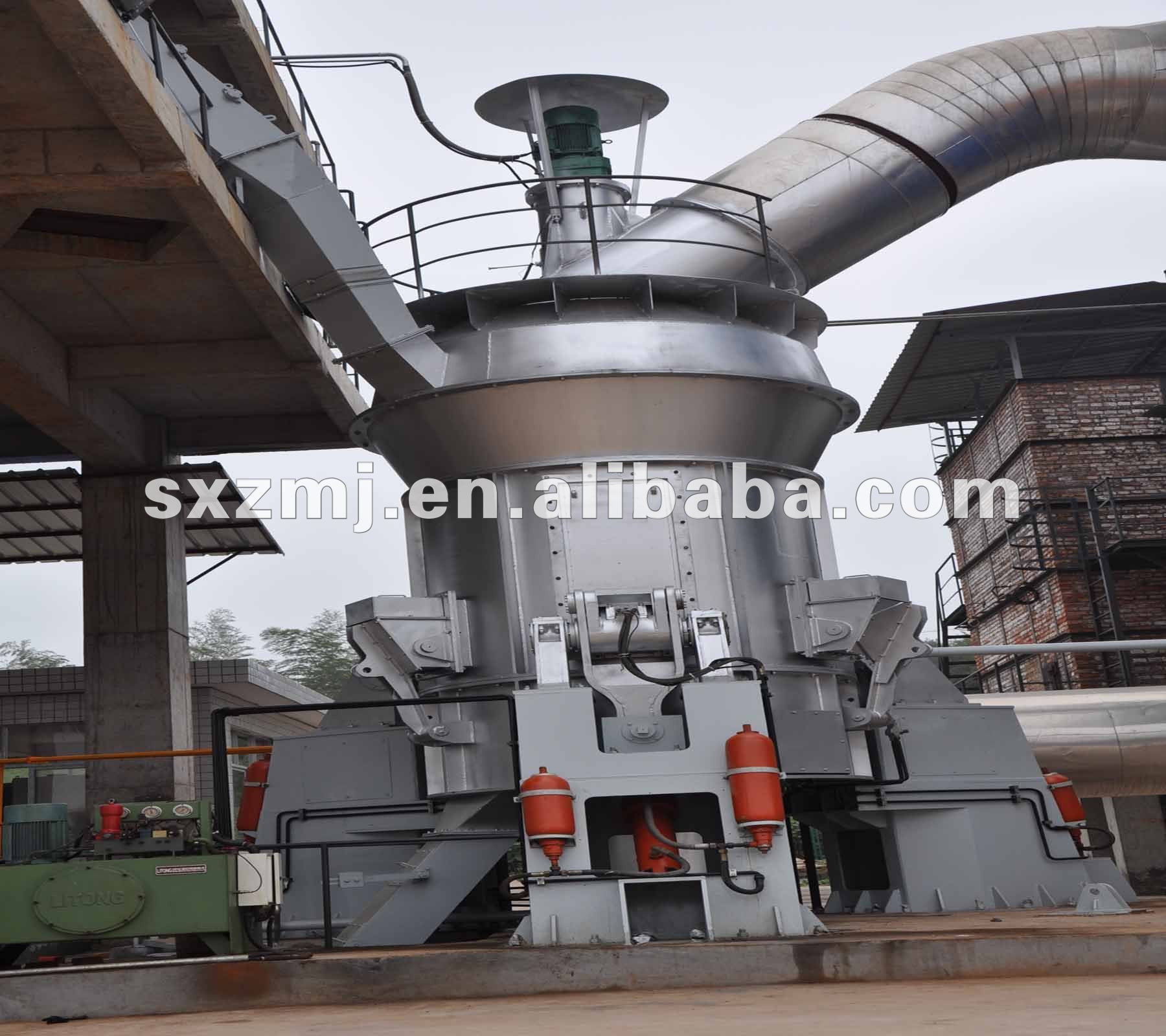

SHENXIANG Vertical Grinding Mill

Overview

The motor drives the millstone to rotate through vertical reducer. The solid material is fed through the air lock feeding device from the feed inlet into the disc center, then been left to the periphery of the disc under the action of the centrifugal force field, and then turns to be powder due to repeated rolling by the roller. The crushed material overflow from the edge of the disc. Then the powder material is rising by the high-speedair flow from the bottom of the machine. Under the function of the rapidly rotating rotor, when the rising air and powder material transmit through the saparator, the upper part of the mill, coarse powder is isolated and fall into the center of disc to be re-grinding while fine powder will come out of the mill with the air flow and be collected into a dust arrester installation, it is the product. Those particulate material which didn't been taken away by the air flow, after spilling out of the millstone, will back to the feedign device though circulating of bucket elevator and be grinded in the mill together with new raw material. For materials with higher moisture content, hot air is blowing-in. Then during process of grinding, saparating and flowing, wet material will be dried for its full mix with hot air and reaches moisture requirement of the product..

Main Features

l Shenxiang Vertical Mill gathers the functions as crushing, grinding, drying, grading and transferring, have a simple system and easy to operate. With a high degree of automation, not only suitable for large-scale and oversized large scale industrial production, but also adapt to small and medium scale production

l High grinding efficiency, large extent of energy saving. Compared with the ball mill system, Shenxiang Vertical Mill can save electricity 30 ~ 50%; compared with traditional vertical mill, as it has a large proportion of outer loop, the system power consumption can reduce 20%.

l Shenxiang Vertical Mill is characteristics with high production fineness ratio, high manufactural precision and high separating efficiency, so it is more suitable for the production of ultrafine powders.

l Small abrasion, low consumption of steel. Millstone is not in direct contact with the rollers, both liner and roller are made by high abrasion-resistant material.

l Reliable operation and easy maintainance. The rollers can be took out of the mill when overhaul. For those large machine which have four rollers, when repaire one or two rollers in symmetric position, the other two rollers can work as usual, and that could up to 60 to 70 percent of normal capacity, does not affect or less affect on the entire production line.

l High cost performance, save investment. simple installation, small cccupation of land area, and economized investment in civil construction.

l Small vibration and noise, no fyling dust.

Specification

Table of technical parameters in CFB boiler furnace limestone desulfurization system

models	SXLM 1600	SXLM 1900	SXLM 2200	SXLM 2400	SXLM 2600	SXLM 2800	SXLM 3100	SXLM 3400
Production capability(t/h)	12	20	28	40	52	65	90	115
Max feeding particle size(mm)	30	30	40	50	60	70	80	80
Products fineness(mm)	0,044mm(325mesh)screen residue≤10%
Raw water content(%)	<10
Products water content(%)	<1
Power of main motor(kw)	185	280	400	500	630	800	1120	1400

Table of technical parameters of Shenxiang Vertical Mill(cement, power industry-coal)

Model	SXLM 1600	SXLM 1900	SXLM 2200	SXLM 2400	SXLM 2600	SXLM 2800	SXLM 3100	SXLM 3400	SXLM 3800	SXLM 4300	SXLM 4800
Production capability(t/h)	16	23	29	36	50	65	82	102	128	165	205
Max feeding particle size(mm)	30	30	40	50	60	70	80	80	80	80	80
Coal powder fineness(mm)	0/08mm screen residue-10%
Black silk ribbon material water content(%)	<15
Products water content(%)	<1
Power of main motor(kw)	185	250	315	400	560	710	900	1120	1400	1800	2240
