Specifications, 1 high clearance ratio, 2 seasonable structure, 3 large productivity, 4 low power consumption - details see: https://www.machineto.com/china-industrial-wheel-sand-washing-machine-for-stone-and-gold-10320578

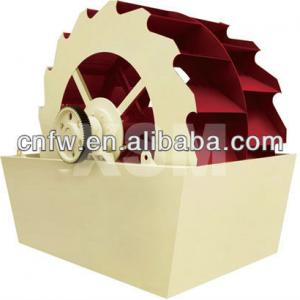

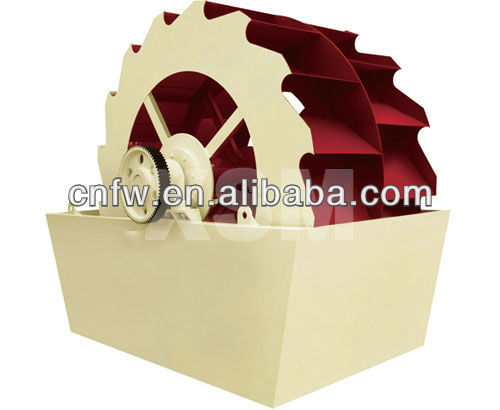

The Description of Sand washer:
Sand washer is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand washing machine can improve the quality of the sand.

Application of Sand washer:
Sand washer is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand washing machine can improve the quality of the sand. The materials include the required gravel in building-site, gravel factories, hydropower station and concrete dam site, post and electric pole factory, casting-70 sand, glass factory's quartz sand and refilling pressure sand. Sand washer is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.

Characteristics and advantages:
Advantages are: Reasonable structure, high efficiency, and little sand loss during washing; The most advantageous factor is that the transmission device isolates with sand and water, which greatly reduces the failure rate. It is the perfect equipment for domestic sand washer industry.

XS Series Mineral sand washer Working Principles:
Feed material is normally delivered between two to four feet from the feed end of the box and is subjected to an aggressive washing action resulting from the intermeshing paddle design. The paddles perform two functions: They help convey material and are the catalyst to material on material scrubbing. The clean material works uphill, between the shafts, and is discharged out the bottom of the box. Deleterious materials are absorbed into water and carried over a weir on either side of the box. The length of the washer box is dependent upon the percentage and tenacity of clay or the waste to remove.

model	XS2200	XS2600	XS2900	XS3500
Diameter (mm)	2200	2600	2900	3500
Rotate speed (r/min)	1-2	1-2	0.8-1.5	0.8-1.2
Capacity (t/h)	15-30	20-50	50-100	120-200
power(kw)	4	5.5	7.5	11
weight(kg)	4300	5600	8100	9900
Overall dimensions(mm)	3150×1910×2280	3520×2390×2690	3820×2640×3200	4420×2930×3800
