Calcite Powder grinding mill, Micro Powder Grinding Machinery
Calcite Powder grinding mill, Micro Powder Grinding Machinery, Grinding Mill, 1. grind calcite 47-5 micron, 2. high yield - details see: https://www.machineto.com/calcite-powder-grinding-mill-micro-powder-grinding-machinery-10313960
| Condition:New | Type:super fine powder mill | Motor Type:AC Motor | Power(W):50HZ |
| Capacity(t/h):Various,0.6-6.5 | Place of Origin:Shanghai China (Mainland) | Brand Name:Clirik | Model Number:HGM9024 |
| Certification:CE | Warranty:ONE YEAR | After-sales Service Provided:Engineers available to service machinery overseas | color:as your require |
| Ring Number(layer):3-4 | Roller Number(piece):24-32 | Main Shaft Speed(r.m.b):200-220 | Input Size(mm):below 20 |
| Finshed Size(μm/mesh):5-47(325-2500) | Overrall Dimension(L*W*H,m):14.7*4.8*7.2 | Motor Power(KW):185-204 |
Calcite Powder Grinding Mill
Micro Powder Grinding Machinery, Grinding Mill
is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness
under six. Suchas calcite (calcite carbonate, calcium carbonate), chalk, limestone, dolomite,
kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled
between 0.047 and 0.005mm. Comparable withball mill, it is economical, low cost and low
consumption.

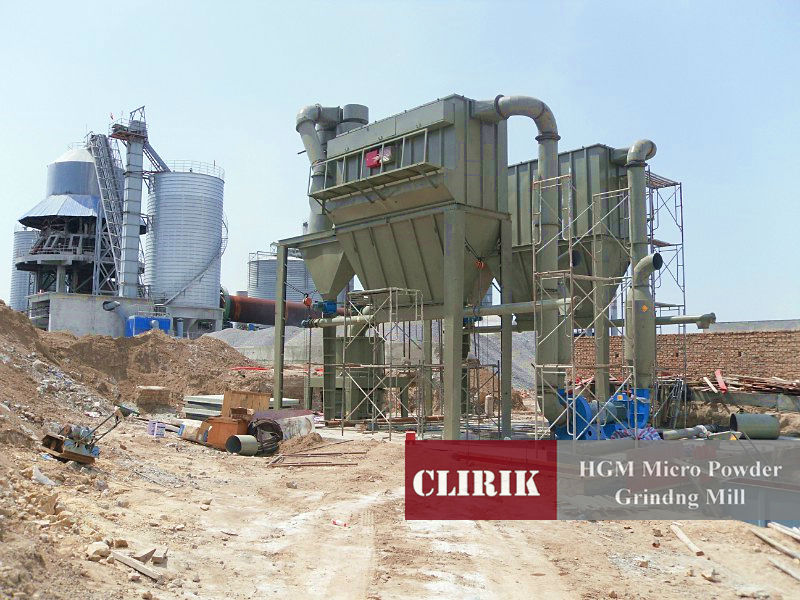

Production Line Configuration Calcite Powder Grinding Mill consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems |
HGM8021/10027 is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs
hardness under six.Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, talc etc, totally more than
100 kinds of materials.
Product fineness can be controlled between 400~3000 mesh (47~5 micron)
Technical Data
| Model | HGM8021 | HGM9024 | HGM10027 | HGM10036 |
| Ring Diameter/mm | 800 | 900 | 1000 | 1000 |
| Ring Number/ pcs | 3 | 3 | 3 | 4 |
| Roller Number/pcs | 21 | 24 | 27 | 36 |
| Main Shaft Speed /r.p.min | 230 | 200 | 180 | 180 |
| Input Size /mm | ≤20 | ≤20 | ≤20 | ≤20 |
| Finished Size /μm | 5-47 | 5-47 | 5-47 | 5-47 |
| Capacity t/h | 0.4-4.5 | 0.4-5.5 | 1.6-6.5 | 0.7-7.5 |
| Outlet Size LXWXH /m | 13.9x4x6.2 | 14.7x4.8x7.2 | 18x4.6x8.6 | 18x4.6x8.6 |
| Power /Kw | 145 | 192 | 263 | 263 |
Associated equipment parameter
Name | HGM8021 | HGM10027 | ||||
| Power | Qty | Type | Power | Qty | Type | |
| Bucket Elevator | 3KW | 1 | Y100L_4B3 | 3KW | 1 | Y100L—4B3 |
| Vibrating Feeder | 0.06KW | 1 | GZ1F | 0.06KW | 1 | GZ1F |
| Main Unit Reducer | 55-75KW | 1 | Y250M-4/Y280S-4 | 110KW | 1 | Y316L 1_6 |
| Inverter Classifier | 18.5KW | 1 | YVP180M_4_B5 | 37KW | 1 | Y225S_4_B5 |
| Dust Cleaner | 1 | DMC120 | 1 | DMC184 | ||
| High Pressure Positive Blower | 45KW | 1 | Y255M-2 | 75KW | 1 | Y280S_2 |
| Spiral Conveyor | 1.5-3W | 2 | Y90L-4_B5 | 3KW | 2 | Y100L2_4_B5 |
| Seal Discharge Valve | 0.75KW | 2 | Y802_4 | 0.75KW | 4 | Y802_4 |
Update Date:2011-4-2 2:41:08
| Packaging Detail:standard container |
| Delivery Detail:30days |
