CE certified, standard electric installation, safety guarantee on operation. - details see: https://www.machineto.com/bottle-washing-machine-10308126

Brief introduction:

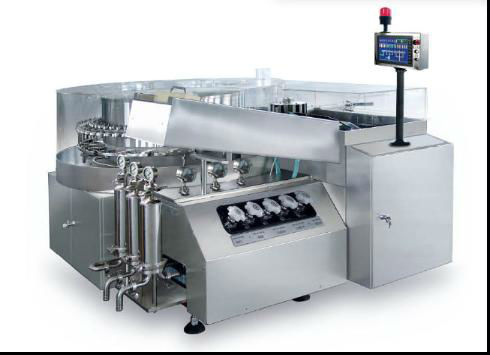

Kcq series vertical vial washing machine is the key machine type which our company is generalizing in recent years. The washing method is confirmed by our partners and users. It is widely used for washing of vials, ampoules, oral liquid bottles. Change part is easy to change.

Working principle:
This machine consists of bottle feeding net conveyor, ultrasonic power tank, bottle feeding pliers, water and air filter, washing needles, star wheel and electric control system. Coarsely washing is conduct by the power of ultrasonic wave to wash the inner and outer wall of the bottles. Finely washing use purified water, WFI and compressed air to wash the inner and outer wall of the bottles alternately.
Washing process: bottles will be washed coarsely in the ultrasonic wave tank through the bottle feeding net conveyor. With the help of screw conveyor and lifting block, the bottles will be rotated by the manipulators by 180 degree, and then rinsed by the washing needle using water and air alternately. Finally, the manipulators will rotate the bottle by 180 degree again and then push them to the bottle reclaiming tray. The washing effect is guaranteed.

Characteristic:
Ultrasonic wave power can wash the wall of the vials thoroughly, cleaning effect is good and the speed can be adjustable by inverter.
Water and air come through separate 0.2and 0.45 filter, clean degree is high.
"3 Water,3 air"alternated rinser
The washing wfi water can be used as recirculation water, energy-saving and environment-friendly.
Water and air pipe separate, avoid cross contamination
Water and air low pressure alarm, auto counting function
The big turntable for washing is finely fabricated, the running is table and bottle breakage ratio is low.
Suits bottles of different spec, easy to change the change part
Can be used as single machine or part of the production line
Can choose touch panel
Fully comply with gmp requirements.

Product Table

CQ20

KCQ30

KCQ60

KCQX80

KCQ100

KCQ120

production capacity

90~100(1~20mL)

140~150(1~20mL)

------

380~400(1~15mL)

480~500(1~15mL)

570~600(1~10mL)

vial

70~80(2~100mL)

120~150(2~100mL)

240~290(2~50mL)

380~400(2~30mL)

450~500(2~30mL)

570~600(2~10mL)

Oral liquid

70~100(5~100mL)

120~150(5~100mL)

240~290(5~30mL)

380~400(5~20mL)

450~500(5~20mL)

570~600(5~10mL)
