ball mill features, 1) wet or dry ball mill, 2) high capacity, 3) fine end product size, 4) reliable performance with ISO - details see: https://www.machineto.com/2013-best-selling-grinding-ball-mill-10313961

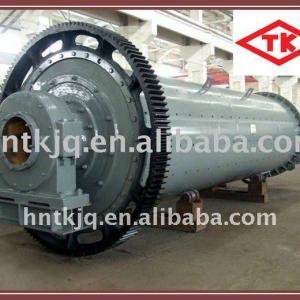

Ball mill

Aball mill, a type of ,is a cylindrical device used to grind (or mix) materials like ores,chemicals, ceramic raw materials and paints. Ball millrotate around ahorizontal axis, partially filled with the material to be ground plusthe grinding medium. Different materials are used for media, includingceramic balls, flint pebbles and stainless steel balls.

Working principleBall mill
Ball mill,a kind of horizontal drum-type rotating device, is a grate mill withexternal gear and double bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which hasstep or waved lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in thefirst bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. Powder shall be discharged from discharging grating, ending the milling process.

FeaturesBall mill

Ball millis mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotationgear, motor, electric machine, etc). Hollow axis is made of steel partswith a lining replacable. Major rotation gear, machined by rollingwheel of casting, is lined with wearing plate with fine wear-resistingproperty. This machine runs stably and reliably. Based on difference of materials and discharging types, dryBall milland wetBall millare selectable.

Specifications of Ball Mill

Type	Rotation Speed Of Cylinder (r/min)	Loading of Ball (t)	Feeding Size (mm)	Output Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)
Φ900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Φ900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
Φ1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
Φ1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
Φ1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
Φ1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
Φ1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
Φ1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
Φ1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
Φ1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
Φ1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
Φ2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
Φ2200×6500	21	30	≤25	0.075-0.4	14-26	380	52.8
Φ2200×7500	21	33	≤25	0.075-0.4	16-29	475	56

Note: The above technical parameters are just for your reference.
