Grinding mill machine from china manufacturing

Grinding mill is a new kind of mill, which is invented with great concentration and on the basis of many years of powder processing experiences. This invention starts an epoch of high efficiency and low cost in international mining industry.

1.Application of grinding mill

High Pressure Suspension Mill can be used to grind non-inflammable and non-explosive materials with Moh’s hardness below 9.3 and moisture content below 6%, such as barite, limestone, pottery, scoria. Size of final products can be adjusted between 80-425 mesh (The fineness can reach 1000 mesh).High Pressure Suspension Mill can produce coarse powder between 30-80 mesh by adding special equipment. This machine is widely used in the fields like mining, chemical industry, construction materials, metallurgy, etc.

2.Features and Characteristics of grinding mill

1. Compared with other mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.
2. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
3. High Pressure Suspension Mill meets the requirement of national dust-dump standard.
4. The separator can be adjusted very easily.
5. The multi-class seals are adopted to keep the grinding equipment tightly closed.

3.Working Principle of micronized powder product line

In the mainframe of High Pressure Suspension Mill, there are strong springs with pressure as high as1000-1500 kg equipped on the roller suspender. When High Pressure Suspension Mill works, the roller rotates around the principal axis, and clings to ring under the effect of the strong spring and eccentricity. Its press is 1.2 times of Raymond mill under the same press condition, so the production is largely increased. When the materials are sent into the grinding chamber, they are brought to the space between the roller and ring and get grinded. Then the powder grinded will be blown into separator. The fine powder after departed with the air is discharged through the outlet as final product. The large-sized powder falls back for regrinding. The air will be back to the blower for repetition of the above process. The left air wil come to thel bag filter to get cleaned. When the wear and tear between roller and the ring reaches certain degree, adjust the length of the strong spring,, so to keep the invariable pressure between the roller and the ring, to make sure the stable production and the fineness.

Our patent product:
(2) Product size is adjustable in the range of 80 - 425 meshes
(3)Better design, low cost

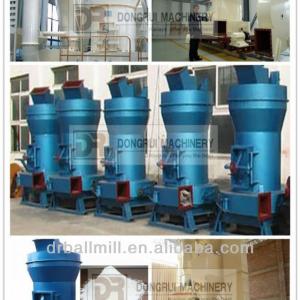

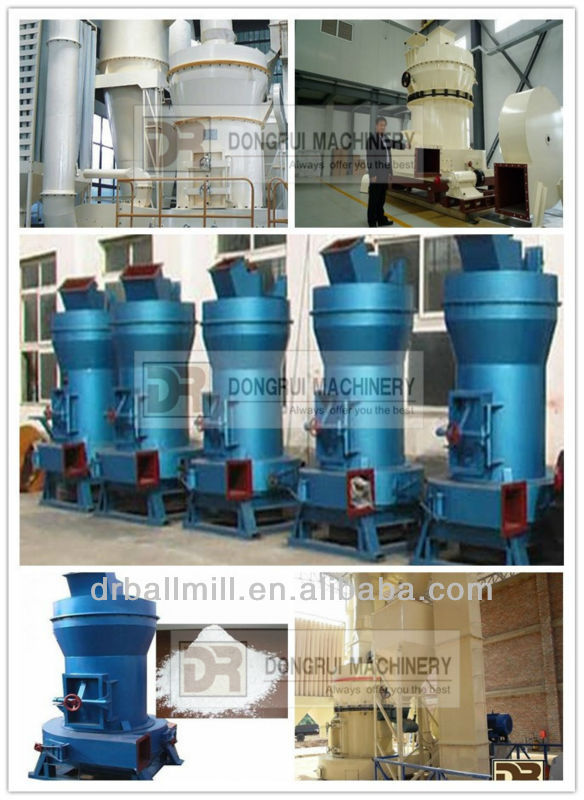

5.OUR client's production line picture

6.Technical data of micronized powder product line

Model	Piece of roller	Size of the roller (mm)	Size of the ring (mm)	Feed size(mm)	Fineness of powder (mm)	Capacity (t/h)	Motor power (kW)	Weight (without motor)(t)	Overall dimension(mm)
YGM65	3	Φ210×150	Φ650×150	≤15	0.033-0.613	0.4-1.8	15	3.6	4100×3300×4500
YGM75	3	Φ260×150	Φ780×150	≤15	0.033-0.613	1-3	18.5	4.8	4300×3500×5100
YGM85	3	Φ270×150	Φ830×150	≤20	0.033-0.613	1.2-4	22	8	5300×4100×5200
YGM95	4	Φ310×170	Φ950×170	≤25	0.033-0.613	2.1-5.6	37	14	7100×5900×7900
YGM130	5	Φ410×210	Φ1280×210	≤30	0.033-0.613	2.5-9.5	75	24	7900×8000×9700
YGM160	6	Φ440×270	Φ1600×270	≤35	0.045-1.9	8-16	132	24	12550×5700×8355

The raw material and the end product:

Shipment picture:

7..in orderto give you a responsible quotation of grinding mill , you can inform us the following information:
1. What's the material you are going to deal with?
2. What's the granularity of the material?
3. What's the granularity of the final products are you going to achieve?
4. What's the producing capacity you are going to achieve?

8.the service before and after the selling:

1). Ore laboratory test

2). Ore beneficiation test

3). Flowchart designing and layout designing.

4). Full set of machines

5). Erecting and commissioning

6). Training

7). Technical consolation

8). End products selling

9.training & service

Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 2-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

.

Why choose dongrui manufacture

We are manufacturer in Zhengzhou, which serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 25 years of efforts and innovation,our company is now a leading brand in China.

Affordable, high-quality machines. Our highly competitive price relies upon our ability to minimize our costs, of which our

competitors don’t.

1. We are factory(NOT Dealer)

2. We own our factory & Land (NOT Rent)

3. Staff reside in factory(Stable Workforce)

Producing high-quality and reliable machines is always our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost, instead we manufacture our machines to supply you the best need.

You can contact me in any time

If you want moredetalis information of grinding mill machine pls send e-mail me
