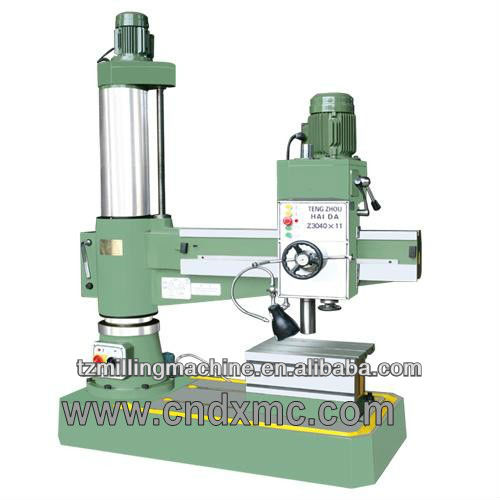

SZ3040 Radial drilling machine

Hydraulic clamping, Hydraulic speed, Hydraulic primary, Mechanical and electrical double insurance - details see: https://www.machineto.com/sz3040-radial-drilling-machine-10124869

Condition:New	CNC or Not:Normal	Drilling Speed:20-900	Place of Origin:Shandong China (Mainland)
Brand Name:DXMC	Model Number:SZ3040	Power(W):7.5w	Certification:CE standard and ISO 9001
Colour:according to customer need

contact supplier for SZ3040 Radial drilling machine

specification	SZ3040×11	SZ3040×11/II	SZ3040×11A	SZ3040×14	SZ3040×14Ⅱ
max. drilling diameter mm	Cast iron40Steels32	Cast iron40Steels32	Cast iron40Steels32	Cast iron40Steels32	Cast iron 40 Steels 32
Distance between spindle axis and column mm	260-1050	260-1050	260-1050	260-1150	260-1050
Distance between spindle nose and working surface of base plate mm	360-1/1100	360-1/1100	360-1/1100	360-1400	360-1/1400
spindle travel mm	200	270	200	200	200
spindle taper(morse)	4	4	4	4	4
range of spindle speeds r.p.m	75,130,240,380,660,1200	40-1896	75,130,240,380,660,1200	75,130,240,380,660,1200	40-1250
number of spindle speeds	6	12	6	6	6
r.p.m rang of spindle feeds	0.10-0.25	0.13-0.54	0.10-0.25	0.10-0.25	0.10-0.25
steps of spindle feeds	3	4	3	3	3
Radial rotation Angle(°)	360	360	360	360	360
main motor kw	2.2	2.2	2.2	2.2	2.2
Lifting motor power kw	0.75	0.75	0.75	1.5	1.5
weight kg	1600	1600	1600	2200	1200
overall dimensions mm	1500×705×2200	1550×705×2200	1500×705×2200	1800×810×2300	18008102200
