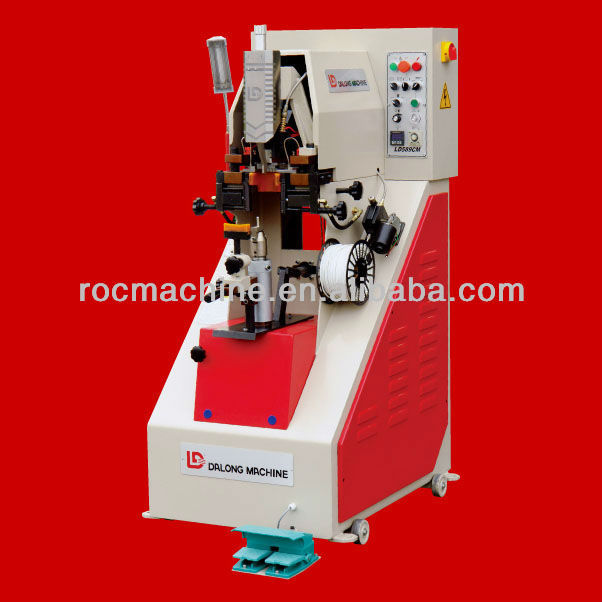

Hydraulic Heel Seat Lasting Machine

1.for all kinds of men's and women's shoes, 2.Smooths the lasting area and upgrade the shoes quality - details see: https://www.machineto.com/hydraulic-heel-seat-lasting-machine-10266540

Condition:New	Automatic Grade:Automatic	Place of Origin:Guangdong China (Mainland)	Brand Name:Dalong
Model Number:LD-589C	After-sales Service Provided:Engineers available to service machinery overseas	Dimension:1100x760x1600mm	Capacity:2000Pairs/8h
Power:1.5 kw	Heating power:0.5 kw	Hydraulic pressure:4 Mpa	N.W.:500 kg

♣Technical parameters

Dimension:1100*760*1600mm
Capacity:2000pairs/8h
power:1.5kw
heating power:0.5kw
hydraulic pressure:4mpa
N.W.:500kg

♣ Features

• It has full sizes of wipers and forming bands which fit every kinds of men and women's shoes. The forming bands are wrapped by chain and can give a good forming effect.

This machine uses gears. Gear racks and ratchets to quickly and precisely adjust the auxiliary supporter.
This machine is suitable for lasting the shoes with general and soft midsoles and with the heels high less than 170mm.
This machine is equipped with the lasting height slightly changing device, which makes the machine easily adjusted and finds position accurately.
The second time rising and pressing of the last supporter works with the wiper-heating device to increase the lasting effect. It smoothes the lasting area and upgrade the shoes quality.
