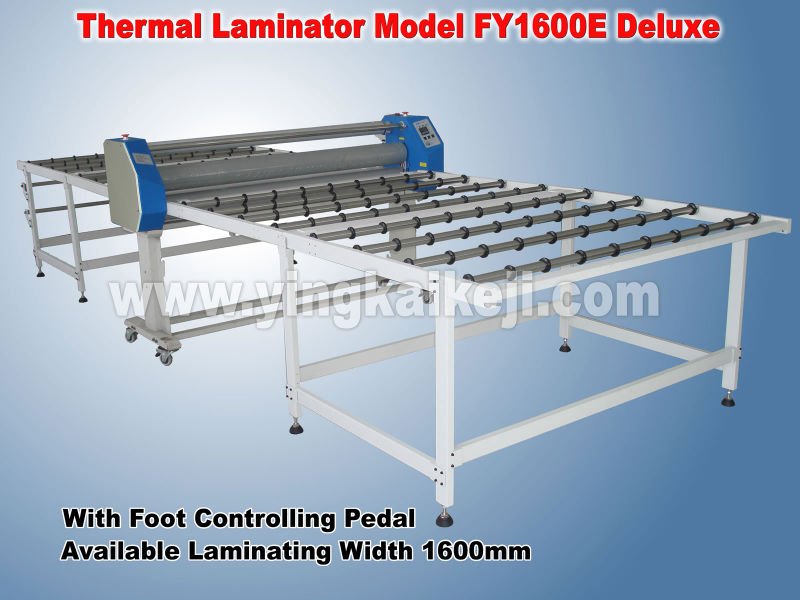

Glass Laminator Glass Laminating Machine 1600

Glass Laminating Machine;, fine color rendition;, no bubble,no discolorment;, no fold, no separation!ect - details see: https://www.machineto.com/glass-laminator-glass-laminating-machine-1600-10085128
Place of Origin:Henan China (Mainland)Brand Name:feiyangModel Number:1600Diameter of Laminating Roll:130mm
Max. filming width:1600mmMax. filming thickness:30mmAdjustable speed range:0-4m/minAdjustable temperature range:environmental - 125C
Warm up Time:10-15 minLaminating mode:electromotive drivenPressure adjusting mode:Linkage Regulation of coordinated controlMax. Power Consumption:1.0 kwh
Input Frequency:50-60HZ
Glass Laminator Glass Laminating Machine 1600
contact supplier for Glass Laminator Glass Laminating Machine 1600


Glass Laminator Glass Laminating Machine 1600

Advantage:
1) Control panel is by Micro-Processor controller, which light touching the key operate, this feature is peculiar to our company. With advanced design, better appearance and practical.
2) Reversible working platform, for convenient maintenance and space saving.
3) Adjustable rotating roller, ensure a fine smooth surface without fold, without bubble.
4) Adjustable automatic rolling system of swelling mechanism, ensures a fine rollup materials without distortion, labour saving and space saving.
5) Leaning preventing T-square, a feature of great originality in the industry which is designed to prevent the deviation. convenient in use.
6) The passive membrane feeding system of swelling mechanism, increases the Ductility of membrane and makes the surface more smooth.
7) With backup bracket, easy to take, help saving your minimal resources available.
8) One machine with two functions, the membrane's base can be collected by the swelling roller automaticly during cold laminating mode. easy and fast to operate, help to save time and manpower.

Feature:
1) Cost low to USD0.3 per square meter. Bright in color, and in good reproduction.
2) Fine in surface flatness, no fold, no bubble, no dustiness, no discolorment. independent of environmental temperature, unaffected by climate, good color rendition and diaphaneity.
3) With the laminating speed up to 200sqm/hr. time saving, space saving, labor saving.
4) Reduce probllems of waste Disposal after use.
5) With two laminating options of operating mode, thermal laminating mode also another cold mode.
6) Wide applacition in use, much suitable for indoor printing work.
7) Laminate membrane on variety of materials such as printing paper, photographic paper, reflective flex, glass plate, wood board, etc.
8) With customized optional working table, length and width are according to the user's requirement, to support laminating unflexable materials.


Specificaton Parameters:
ModelFY1600
Diameter of Laminating Roll:130mm
Max. filming width:1600mm
Max. filming thickness:30mm
Adjustable speed range:0-4m/min
Adjustable temperature range:environmental - 125C
Warm up Time10-15 min
Laminating mode:electromotive driven
Pressure adjusting mode:Linkage Regulation of coordinated control
Max. Power Consumption:1.0 kwh
Input Frequency:50-60HZ
Rated input Voltage:110/220(optional)
Rated Input Power:2500watt
Net Weight:204kg
Dimension:2070mmx700mmx1200mm



Packing Description:
Gross Weight:258kg
Packing Dimension:212cmx70cmx72cm
Packing Volume:1.10CBM
Manner Of Packing:Shake-Proof Wooden Case with foam packaging inside


Glass Laminator Glass Laminating Machine 1600
Packaging Detail:Shake-Proof Wooden Case with foam packaging inside
Delivery Detail:In two weeks after payment
