Automatic rollon wax filling machine

1.filler and capper, 2.lotion,cream,shampoo,etc, 3.PLC control, 4.for varies fields, 5.With heating function - details see: https://www.machineto.com/automatic-rollon-wax-filling-machine-10054799

Type:Capping Machine	Condition:New	Application:Food,Beverage,Commodity,Medical,Chemical,Cosmetic	Driven Type:Electric
Automatic Grade:Automatic	Voltage:220V	Power:0.75KW,220V	Packaging Type:Bottles
Packaging Material:Plastic,Metal,Glass	Place of Origin:Guangdong China (Mainland)	Brand Name:LM	Model Number:LM-GZ
Dimension(LWH):120013501700mm	Weight:/	Certification:CE/ISO9001	After-sales Service Provided:Engineers available to service machinery overseas
Applied:cosmetic,food,chemical,pharmaceutical,etc	Filling:scream,lotion,shampoo,etc	vessal:bottles	filling volume:1-80cc
air pressure:4-5kg/cã¡	Filling speed:45-55b/min	hopper::40L, customerized	function:filling,caping

Machine working video link:

http://v.youku.com/v_show/id_XNTgyMTAyODQw.html

1.Introduction:

The series of filling and capping machines are designed to dispense a wide variety of liquid and semi-liquid products.

Suitable for filling water-thin to medium thick products, such as liquid medicine, toner, perm lotion, air freshener, skin care, etc.

Featured with compact configuration, small area occupied, nice appearance, easy adjustment and wide applicability, which make them can be widely used in the pharmaceutical, pesticide, daily chemical, food or other industries.

Driven by accurate mechanical transmission, which can guarantee the quality of the products effectively. All the work stations, including filling, capping are equipped around one turnplate, thus both the working space and the operators needed can be greatly reduced.

The automatic and uninterrupted producing mode can help to guarantee the production volume you need. We choose good material and parts to assemble our machines.

All the parts come in touch with the products are made of food grade stainless steel imported, and all the pneumatic and electrical parts are known brand products from Germany, Japan or Taiwan.

It is the innovation design and the good quality parts that ensure these series of machines occupy the leading position absolutely in the domestic market of liquid packaging.

Especially suits for producing various kinds of products in small batches of production.

2.Technical parameter:

Filling Volume: 1-80ml

Filling Speed: 45-60 B/M

Voltage: 220V/380V 0.75KW

Air Pressure: 4~5kgf/cm²

Hopper Piston: 25L (It can be customized.)

Dimension: L1320mm×W1600mm×H1650mm

3.Detailed:

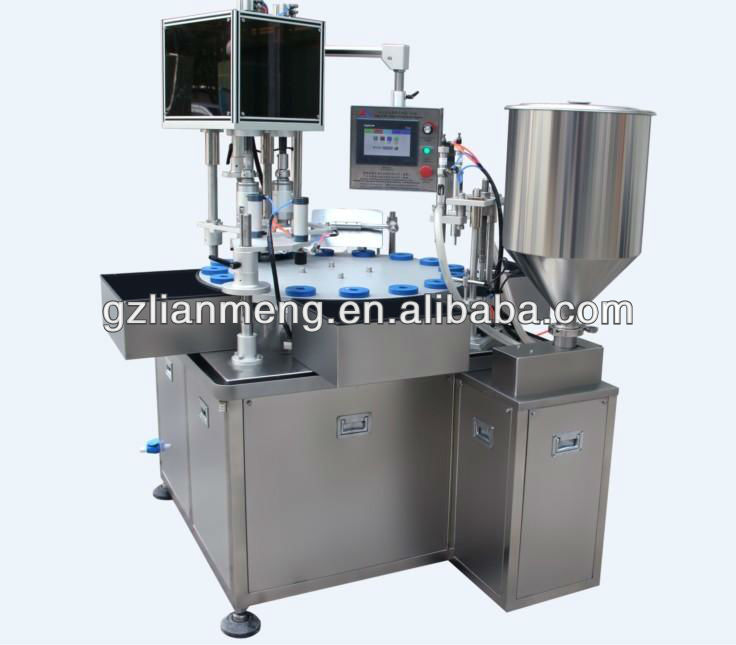

This machine includes the material filling part, capping part, and automatic PLC control part with a material hopper which its volume is customerized. Place the bottle manual.
