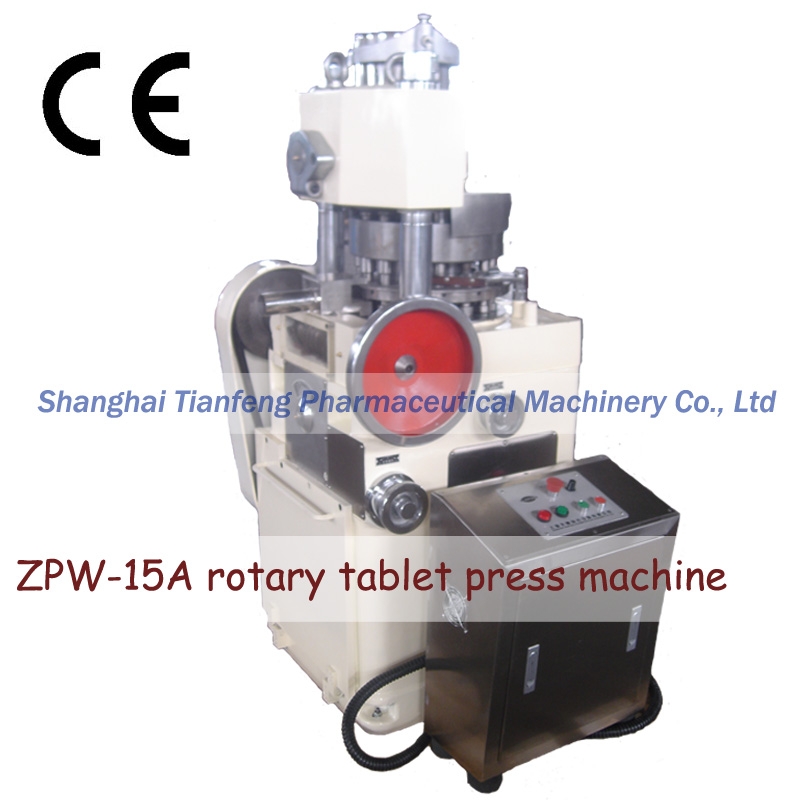

ZPW-15A chemical tablet press machine

This rotary tablet press machine is design for dealing with chemical. (pharmaceutical machinery) - details see: https://www.machineto.com/zpw-15a-chemical-tablet-press-machine-10309009
Place of Origin:Shanghai China (Mainland)Brand Name:SHANGHAI TIANFENGModel Number:ZPW-15AType:Rotary Tablet Press,Tablet Pressing Machine
certificate:CEApplication:Tablet
ZPW-15A chemical tablet press machine
contact supplier for ZPW-15A chemical tablet press machine


ZPW-15A Rotary Tablet Press machine,press chemical tablet,katalyst tablet ,sterilize tablet

I. Application

1. The machine is a kind of automatic continuous rotary tablet press machine, a basic equipment for the industry of pharmacy, chemistry, food and so on to press all kinds of grain shape raw materials into tablets.

2. It is used to press various round tablets, sugarcoating tablets, calcium tablets and so on in large batches or a small batch of multiple types.

3. It is not suitable to press semisolid or wet powder grains.

II. Structural Features

During operation, the depth of the filling material and the thickness of the tablets can be adjusted. The pressure for tablet pressing is set by the hydraulic drive system and a pressure gauge is attached to the system to show the pressure value. A overload protection unit is included in the system to avoid the damage of the punches and apparatus when overload occurs. The machine stops automatically.

New type ZPW15A and ZPW15B is designed to meet the CE standard. ZPW15B is an improved version of ZPW15A. Its pressing area is sealed with four polymath methacrylate doors to be isolated with outside environment. The material contact parts are t made of stainless steel and their surface is specially antisepticised to avoid pollution.

III. Technological Performance

4. The productivity of main technological data.

Number of the upper punch die on turntable: 40mm

Max. Pressure of sheet press (kilo-Newton): 120

Max. depth of filling (mm): 18mm

Range of the tablets thickness (mm): 9mm

Diameter of the upper and lower plunger (mm): 40mm

Length of the upper and lower plunger (mm).175mm/180mm

Diameter of center dies (mm): .52mm

Thickness of center die (mm): 25mm

Turbine transmission ratio: 2:49

Revolution change of turntable (revolution/minute): 10-25

Output tablets (pieces/hour): 9000--22000

Net weight of the machine (kg): 1500

Height of the machine (mm): 1640

Length and width of the machine (mm): 900*840

5. Data and model of power supply

the main machine

Motor power (KW) 7.5

Frequency (-) 960

Voltage (volt)380

ZPW-15A chemical tablet press machine
Packaging Detail:fumigation-free packages
Delivery Detail:15 days
