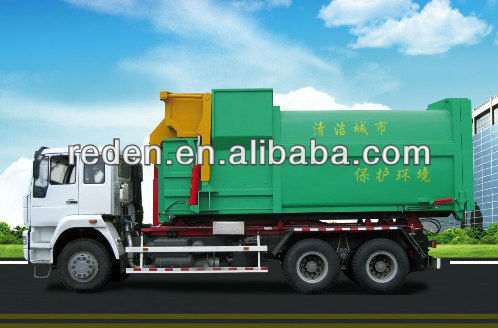

YZT5250ZXX Garbage Truck Series

YZT 5250ZXX Compression Type Garbage Truck Series - details see: https://www.machineto.com/yzt5250zxx-garbage-truck-series-10111238

Condition:New	Drive Wheel:4x2	Type:Compactor	Transmission Type:Automatic
Emission Standard:Euro 3	Volume:> 15000L	Fuel Type:Diesel	Size:553520101660
Place of Origin:Jiangsu China (Mainland)	Model Number:YZT5250ZXX

YZT5250ZXX Garbage Truck Series
Truck model	YZT5250ZXX
Overall dimensions (L×W×H)(mm)	8170×2500×3230
Chassis type	DFL1250A8
Engine	ISDe245 30(or ISDe270 30)
Rated engine power (Kw/ps )	180/245(198/245)
Rotation speed (r/min)	2500
Rated load (Kg)	13105
Vehicle Kerb weight (Kg)	11765
G.V.W (Kg)	25000
Wheel base(mm)	4350+1300
Wheel tread(front / rear)(mm)	1986/1860
Tyrepressure front / rear (Kpa)	700
Max.gap to the ground (mm)	240
Min.turning diameter (m)	≥20
Climbing ability (%)	≥25
Max. speed (km/h)	90
Braking distance (30 km/h,m)	≤10
Fuel consumption per 100 Km (L)	≤28
Tank dimensions (L×W×H)(mm)	5535×2010×1660
Effective volume of the tank (m3)	17.5
Dip angle of tank(°)	49
max lifting scale of boom(t)	20
Rated working pressure of Hydraulic systems(Mpa)	23
Hydraulic oil temperature (°C)	≤65
Hydraulic oil box volume (L)	220
Way of control	Hydraulic control and manual
