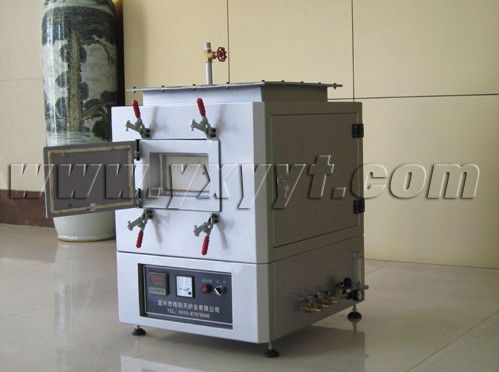

Based on box-type electric furnace, the atmosphere furnace deliver the protective gas via pipeline to fill the whole hearth - details see: https://www.machineto.com/yyt-kqxs-series-1000-atmosphere-furnace-10085230

Based on box-type electric furnace, the atmosphere furnace deliver the protective gas via pipeline to fill the whole hearth, thus to achieve the goal of protecting the furnace. Ceramic fiber is used for hearth material, which has the features such as small heat capacity and rapid temperature rise; an intelligent digital display programmable temperature-controlled meter is utilized, which is able to program multistage temperature rise, preservation and drop curves; it has full-automatic temperature rise and preservation, and it can stop automatically after the completion of program operation and there is no need for anyone to keep watching. High temperature resistance wire is used for heating element, and it is placed on the furnace wall in the form of shallow burial depth to form heating plate, which is easy to use and safe, and the temperature control precision is ±1ºC.

Electric furnace model	Operating temperature (ºC)	Hearth dimension (mm)	Power (KW)	Voltage (V)	precision (ºC)
YYT-KQXS-2-10	1000	200×150×150	2	220	±1
YYT-KQXS-4-10	1000	300×200×200	4	220	±1
YYT-KQXS-6-10	1000	400×200×200	6	380	±1
YYT-KQXS-8-10	1000	400×300×300	8	380	±1

Note: products can be designed and manufactured according to specific process requirements of users, please call us for more specifications and detailed technical solutions.
