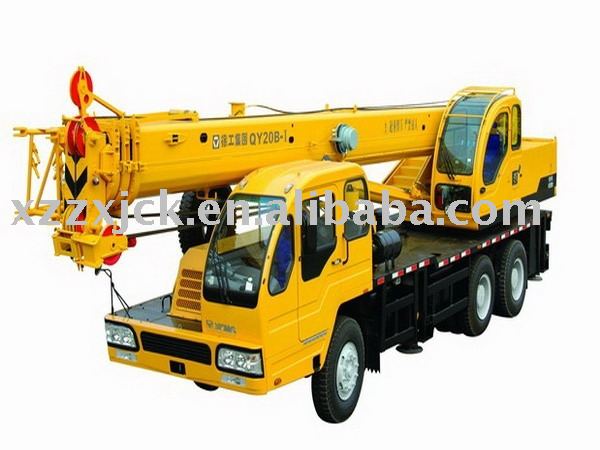

XCMG QY20B-I Crane

Crane, 1.XCMG, 2.Overall 12000*2500*3300, 3.Dead weight in travel state 26020kg, 4.Engine SC8DK260Q3(Eurolll) - details see: https://www.machineto.com/xcmg-qy20b-i-crane-10104871

Feature:Truck Crane,Hydraulic Crane	Condition:New	Application:1-20t	Rated Loading Capacity:20t
Rated Lifting Moment:833KN.m	Max. Lifting Load:20t	Max. Lifting Height:39.9m	Span:4.9/5.4
Place of Origin:Jiangsu China (Mainland)	Brand Name:XCMG	Model Number:QY20B-I	ENGINE:WD615.92E

Crane

Classificatory	Item	Unit	Parameter
Dimensions	Overall length	mm	12000
	Overall width	mm	2500
	Overall height	mm	3300
Weight	Dead weight in travel state	kg	26020
	Front axle load	kg	6900
	Rear axle load	kg	19120
Power	Engine model		SC8DK260Q3(EuroIII)
	Engine rated output	kW/(r/min.)	192/2200
	Engine rated torque	N.m/(r/min.)	1000/1400
Travel	Max. travel speed	km/h	75
	Min. turning diameter	mm	20
	Min. ground clearance	mm	270
	Approach angle	°	21
	Departure angle	°	11
	Max. gradeability	%	35
Lifting performance	Max.total rated lifting load	t	20
	Min.rated working radius	m	3
	Turning radius at swing table tail	m	3.38
	Max. load moment	KN.m	833
	Base boom	m	10.1
	Fully extended boom	m	31.6
	Fully-extend boom+Jib	m	39.9
	Outrigger longitudinal distance span	m	4.97
	Outrigger lateral distance span	m	5.4
Working speed	Boom elevatingtime	s	75
	Boom full extending time	s	95
	Max. swing speed	r/min	3
	Main winch max speed(single line)	m/min	100
	Auxiliary winch max speed(single line)	m/min	100
