It uses top oil cylinder, framed structure;, It is easy to operate and maintain and high output, Building Templates production - details see: https://www.machineto.com/woodworking-machine-hot-press-machine-hot-press-hot-press-10346174

woodworking machine/hot press machine/ hot press/ hot press

plywood machine/ hot press machine/ hot press

Our factory specializes in manufacturing lumber machinery. Our main products are veneer lathes and hotpresses.

Our factory is one of the provincial high-technique enterprises, the provincial "Contract-Keeping and Promises stressing Enterprises", the provincial "Consumer Satisfying Unit" and one of "Lin Yi Top 100 Powerful Enterprises". We have 20 national patents and our products have attained CE certification. Our factory has passed the evaluation of ISO9001 quality certification.

Our products sell well in 26 provinces and cities in our country and are also exported to the European Union, the Philippines, Vietnam, Russia, Malaysia, Thailand, Kazakhstan, India, Indonesia, Iran, Pakistan, Turkey and Mexico

.

Model							BY81-4×8/400
Quantity and diameter of Cylinder							2 unitsΦ320mm
Pressure capacity							400T
Cylinder stroke							800mm
Diameter of Lifting Cylinder							Semi-automatic control
Hydraulic system							25MPa
compression resistance
Main motor							7.5KW
Pressurized motor							5.5KW
Width between nether and top crossbeam							1700mm
Main pump							100:100 Double-vane pumps
Pressurized pump							10ml/rev plunger pump
Dimensions of Main frame							3600×1250×3960mm
Width of plate main frame use							30,22,12mm
Movable crossbeam							2700×1370×400mm
Width of movable crossbeam							22mm

Advantages and Features of JINLUN HOT PRESS:

Hot platen:

It is drilled from excellent carbon solid steel and it is high precision,high strength and durable.

It is manufactured on special worktable,so as to keep the hot platen easy to operate.

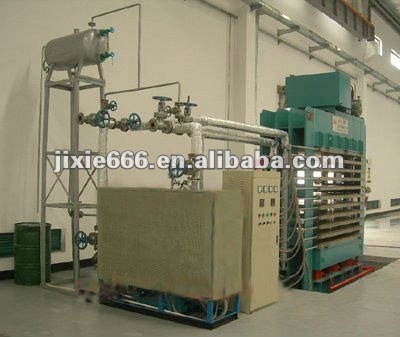

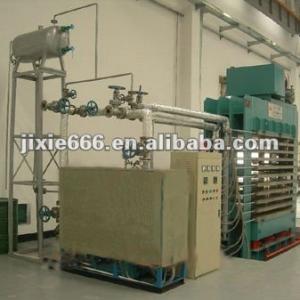

Heating system:

It can be heated by steam boiler,oil heater or electri oil heater.

The steam boiler is low in cost and suitable for common production,yet it is high pressure vessels,so it should be operated carefully.

As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on,yet it may cost much than steam bolier.

The electric oil heater is environmental protection instead of using coal or wood as it's fuel,but it may cost lots of electric energy.

Hydraulic system:

It is "Triple Filter"and it has excellent oil pump and electric motor.

It uses right-angled one-way valve so that it can work smoothly.The pressure is adjustble.

Cylinder:

It is worked through excellent CNC precision machine tool.

It uses high quality oil envelop so as to avoid of oil leaking.

Control system:

Micro-computer ,Manually/Automatic controlled.

It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
