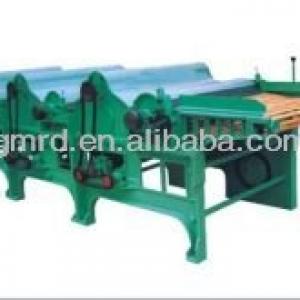

Three Cylinder GM400 Textile Waste Recycling Machine For Textile Recycling

1. High output, 2. advanced technology, 3. Named brand, 4. cotton waste recycling - details see: https://www.machineto.com/three-cylinder-gm400-textile-waste-recycling-machine-for-textile-recycling-10279518
Condition:NewType:CottonPlace of Origin:Shandong China (Mainland)Brand Name:Rongda
Model Number:GM1030Voltage:380VPower(W):18.5KWWeight:2100kg
Certification:CEColor:any color
Three Cylinder GM400 Textile Waste Recycling Machine For Textile Recycling
contact supplier for Three Cylinder GM400 Textile Waste Recycling Machine For Textile Recycling


Specifications of Tree Cylinder /Roller GM400/GM250 Waste Recycling Machine

1.textile waste recycling machine GM400
2.High output
3.advanced technology
4.Named brand
5.cotton waste recycling

Function & Feature of Tree Cylinder /Roller GM400/GM250 Waste Recycling Machine

This machine makes use of the centrifugal force generated by high speed rotation of take-in roller clean out impurities from raw material, loosen fibers, and then press the fiber into big flakes. This machine can also remove the dust in the raw material. It is mainly used to clean cotton, spinning cotton waste to reuse again. It is the best way to reduce cost and make good use of resources.

Technical specification of Tree Cylinder /Roller GM400/GM250 Waste Recycling Machine

1. Output 100~ 120kg /h

2. Diameter of take-in roller 400 mm/250mm

3. Rotating speed of take-in roller first 1900round min; Second the third 2000r/min

4.Dust basket diameter 500mm mesh 2mm

5.Motor Y132S-4 5.5KW three sets

6.Take-in wire 1.09x75º×7 teeth/25.4mm

7.Outside dimension (LXWXH,mm) 3950mm X 1720mm X 1160mm

8.Weight1600 kg

SpecificationGM250-3*1000GM250-3*1500GM400-3*1000GM400-3*1250GM400-3*1500
Roller Diameter250mm250mm450mm400mm400mm
Output40-50kg/hr70-90kg/hr90-140kg/hr120-160kg/hr150-200kg/hr
Motor13.5kw13.5kw15kw17kw17kw
Dimension(mm)4345*1700*11504345*2300*11501500*1700*12004500*1950*12004500*2300*1200
Note

The output and motor power can be influenced by the different material

Three Cylinder GM400 Textile Waste Recycling Machine For Textile Recycling
Packaging Detail:no packing
Delivery Detail:wiyhin 10 days
