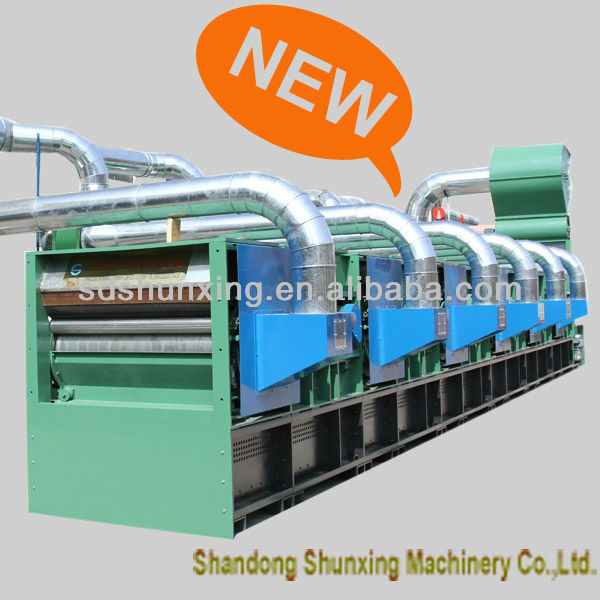

SXMK-1500 waste cloth tearing machine

SXMK-1500 waste cloth tearing machine, 1) higher capacity, 2) longger fiber, 3) automatic, 4)full closed - details see: http://www.machineto.com/sxmk-1500-waste-cloth-tearing-machine-10279185
Condition:NewPlace of Origin:Shandong China (Mainland)Brand Name:shunxingModel Number:sxmk-1500
After-sales Service Provided:Engineers available to service machinery overseaswhite and blue:strong framerags tearing line:textile waste recycling machinelongger fiber:rubber feeding roll
SXMK-1500 waste cloth tearing machine
contact supplier for SXMK-1500 waste cloth tearing machine


SXMK-1500 waste cloth tearing machine

our new model sxmk-1500 waste cloth tearing machine recycled kinds of textile waste (knitting hosiery fabric rags , hard waste thread , polyester ,cloth waste leftover of garment ) get the fiber from these waste enable use for rotor spinning and any other purpose ,make good use of waste material will save cost .the fiber will be 22-35mm but it depend on the raw material .

Technical data :

1) Capacity : 800-1500kgs/hour

2) No. of the cylinder: SIX cylinders

3)Dia. Of the cylinder : 1000mm

4) Cylinder width : 1500mm

5) feeding roll : rubber feeding roll diameter is 255mm

6) Cylinder model : 6aluminiumspiked bar with pins

7) The specification of the each cylinder :

First cylinder : 40000 pins on the cylinder

Second and third : 104000 pins on the cylinder

Forth to sixth : 150000 pins on the cylinder

8) Power of each cylinder :

First : 75kw second to fifth : 55kw sixth : 45kw

dust fan : 5.5kw each cylinder

9)size of the machinery (l*w*h) : 18670 mm * 1750mm * 2035mm

10) Weight of the machinery : about 18000kgs

Packaging Detail:nude or wooden package
Delivery Detail:within 90 days after get the full payment or l/c
