We supply machineries which is useful to Pharmaceutical,Chemicals,Cosmetics,Food, Beverages, Distilleries&allied industries - details see: https://www.machineto.com/sugar-syrup-manufacturing-plant-for-pharmaceutical-industry-10305870

Indo Gulf is a global provider of machineries which is useful to various industries like Pharmaceuticals, Chemicals, Cosmetics, Food, Beverages, Distilleries and allied industries.

We supply machines to liquid oral plants such as Filter Presses, Pumps, Tanks etc. along with Granulation, Liquid Oral, Ointment/Cream manufacturing plants especially specialized in Dryers, Blenders and Mixers.

All product contact parts are made in stainless steel SS 316 other materials and outer surfaces are made in Stainless Steel SS 304. The machines will have High Quality, High functionality, Ergonomic customized designs, efficient high performance as per GMP complaint.
Fluid bed dryers and coaters can be combined with high shear mixer-granulators, wet and dry milling facilities, product handling systems, binder and coating preparation units, filtration units, all designed for fully integrated systems. Safety, containment, product flow and building requirements are in-built for full integration for optimum process efficiency.

We supply

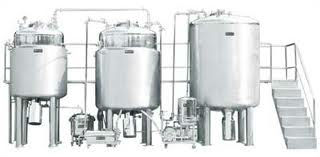

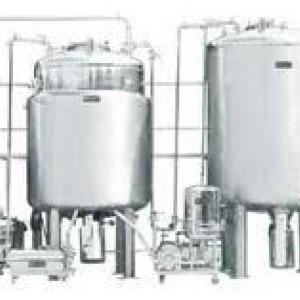

Sugar Syrup Manufacturing Plant

SUGAR SYRUP Manufacturing Plants are ideal tools for the pharmaceutical industry for the production of Oral Liquids.

Its is specially designed to take care of two critical factors which directly affects the quality of the Liquids.

>> Minimum man handling of Liquid

>> Effective cleanness during manufacturing

Needless to say, it also provides the benefits of the effective manpower utilization

Sugar syrup Manufacturing Plant consist the following equipments and accessories.

]- Sugar melting Vessel with bottom entry stirrer
]- Manufacturing vessel with bottom entry homogeniser
]- Storage Vessel with bottom entry stirrer
]- Control Panel
]- Product Piping with filters and valves
]- Working Platform
]- Transfer pump-Centrfugal
]- Filter Press

SUGAR SYRUP PLANT TABLE
BATCH (KG)	SUGAR MELTING VESSEL (CAPACITY) Ltrs.	SUGAR MANUFACTURING VESSEL (CAPACITY) Ltrs.	STORAGE VESSEL (CAPACITY) Ltrs.	APPROX LENGTH (L) MM	APPROX WIDTH (B) MM	APPROX LIFTED HEIGHT (H) MM
500	375	500	500	4500	1050	1815
750	575	750	750	4800	1200	2000
1000	750	1000	1000	5090	1300	2115
1500	1125	1500	1500	25226	1420	2300
2000	1500	2000	2000	6090	1620	2450
3000	2250	3000	3000	6450	1800	2760
4000	3000	4000	4000	6850	1900	2870
