Sand Washing Machine Introduction
The sand washing machine is an artificial sand (natural sand) washing equipment. The sand washing machine is widely used in the washing of the material in gravel pits, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing stations and other industries. The sand washing machine can be divided into two types: XS type [wheel, sand washing machine] and the XL version.

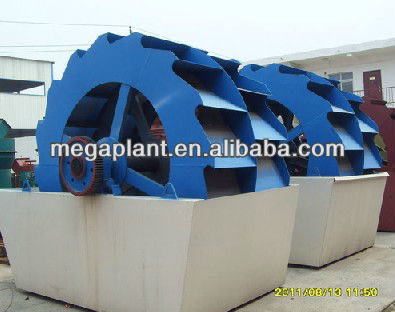

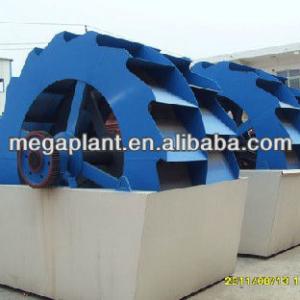

Wheeled sand washing machine works
Sand washing machine work, the motor through the belt, reducer, gear reducer driven impeller slow rotation, sand and gravel into the wash tank to the trough, impeller driven rolling and grinding each other, remove the cover the gravel surface impurities, while undermining the vapor layer of the coated sand, in order to facilitate dehydration; add water to form a strong water flow, timely impurities and a small proportion of foreign body away, and discharged from the wash tank overflow export completely efficient sand washing machine into a cleaning effect. Clean sand from the leaves away, the final sand and gravel from the rotation of the impeller into the trough to complete the cleaning effect of the gravel.
Structural characteristics of wheeled sand washing machine
A simple structure, stable operation
Bearings and water, the material separated to avoid machine damage phenomena caused by the pollution rust prematurely.
3 applies to a variety of work environments.
Material loss. The wash, the washing of high efficiency, fully meet the requirements of high-grade materials.
5 relatively long life, virtually no wearing parts.
6. Rare cases need of repair, it can greatly reduce costs.
Wheeled sand washing machine technical parameters

Model	Helix diameter(mm)	Flume length (mm)	Feeding Size(mm)	Processing capacity(t/h)	Screw speed(r/min)	Motive power(kw)	Water consumption(t/h)	Dimensions(mm)	Machine weight(t)
XL915	915	7585	≤10	100	21	11	10-80	8500×2810×3600	6.27
2XL915	915	7585	≤10	200	21	2×11	20-160	8420×3765×3960	11.11
XL1115	1115	9782	≤10	175	17	15	20-150	10970×3945×4720	10.18
2XL1115	1115	9782	≤10	350	17	2×15	40-300	10970×5250×4720	17.94
