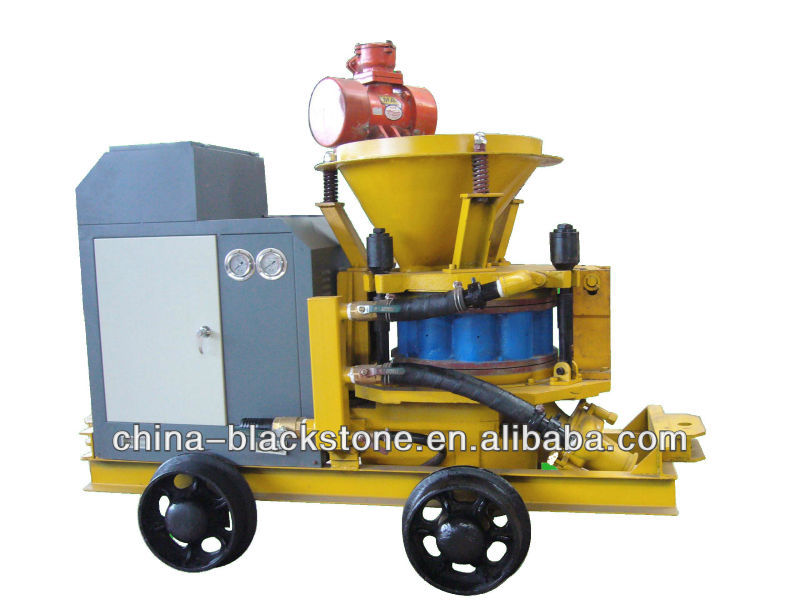

shotcrete gunite machine for construction

wet-mix shotcrete machine, 1. Capacity: 7m3/hour, 2. Maximum jet length: 200m, 3. Applicable materials: Concrete and dinas - details see: https://www.machineto.com/shotcrete-gunite-machine-for-construction-10096322
Condition:NewMax. Conveying Distance:200mMax Aggregate Size:20mmHose Inner Diameter:64 mm
Air Consumption:8 - 10 m3/minPlace of Origin:Henan China (Mainland)Brand Name:HSModel Number:PZ-7
Voltage:380VPower(W):0.37KWDimension(L*W*H):1500x700x1280mmWeight:700kg
Certification:ISO/TS9001:2008Warranty:1 yearAfter-sales Service Provided:Engineers available to service machinery overseasItem:shotcrete gunite machine for construction
shotcrete gunite machine for construction
contact supplier for shotcrete gunite machine for construction


shotcrete gunite machine for construction

Technical parameter

ModelPZ-7
Working capacity7 m3/h
Working air pressure0.4-0.6Mpa
Air consumption7-8m3/h
Max transport distance200m
Applicable water cement ratio<=0.4
Max diameter of material20mm
Motor modelY132-6-5.5KW
Applicable materialsConcrete and dinas
Feeding height1.1m
Net Weight600kg
Dimension1280×700×1280mm

Features:

Workshop:
Spare parts:

shotcrete gunite machine for construction
Packaging Detail:Wooden cases or as your request.
Delivery Detail:30 days
