Russia Type Electric Concrete Vibrator

Electric Concrete Vibrator, Russia type, 220V/ 50Hz, Power: 1.0kw,1.4kw - details see: https://www.machineto.com/russia-type-electric-concrete-vibrator-10095408

Place of Origin:Zhejiang China (Mainland)	Brand Name:CONSMAC	Model Number:SRS Series	Type:Internal
Drive Mode:Electric Vibrator	Frequency:50hz,60hz	Vibrating Amplitude:3000rpm	Length of Flexible Shaft:3.0m, 4.5m, 6.0m
Product Name:Russia type Electric Concrete Vibrator	Power:1.0kw, 1.4kw

contact supplier for Russia Type Electric Concrete Vibrator

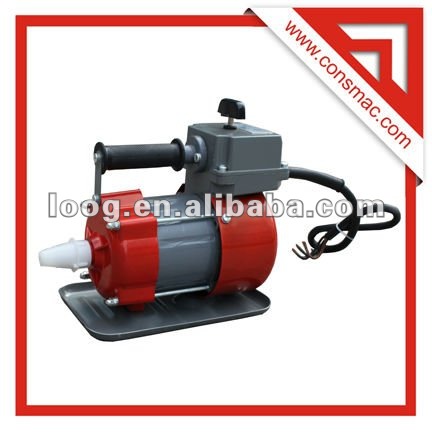

RussiaConcrete Vibrator Motor SRS Series

CONSMAC SRS and SRT Series Concrete Vibrator Motor is specialized designing for East Europe market including Russia,Ukraine,Kazakstan and Byelorussia. Can be used together with CONSMAC SBC Series Russia Type Concrete Vibrator Shaft.

Concrete Vibrator Motor SRS&SRT SeriesSpecification

Model	SRS-10	SRS-14	SRT-10	SRT-14	SRT-16
Power(kw)	1.0	1.4	1.0	1.4	1.6
Frequency(rpm)	3000	3000	3000	3000	3000
Engine Type	Single phase	Single Phase	Three Phase	Three Phase	Three Phase
Voltage	220V	220V	42V	42V	42V
Frequency	50hz	50hz	50hz	50hz	50hz
Weight	14kg	16kg	12kg	14kg	16kg

RussiaConcrete Vibrator Shaft SBC Series

Concrete Vibrator Shaft SBC SeriesSpecification

Models	SBC-1-3	SBC-1-4.5	SBC-1-6	SBC-2-3	SBC-2-4.5	SBC-2-6
Suitable Vibrator Motor	All modes
Length(m)	3	4.5	6	3	4.5	6
Head Dia(mm)	51mm,76mm			28mm,32mm,38mm
Hose Outside Dia (mm)	36			30
Flexible Shaft Dia(mm)	14			12
Weight(kg)	7.5	11	14.5	7	10	13

Concrete Vibrator Shaft SBC SeriesHeadSpecification

Models	SRH-28	SRH-32	SRH-38	SRH-51	SRH-76
Suitable vibrator motor	All modes
Suitable hose	SBC-2			SBC-1
Diameter(mm)	28	32	38	51	76
Length(mm)	410	410	410	410	430
Weight(kg)	1.7	2	2.8	4.1	8.4
