Wet Ball Mill, 1.power 18.5--475kw, 2.feeding material under 25mm, 3.size of outputting 0.075-0.4mm, 4.manganese steel - details see: https://www.machineto.com/ruiguang-iso2008-planetary-ball-mill-wet-ball-mill-ball-mill-prices-10313956

Ruiguang ISO2008 planetary ball mill/Wet Ball Mill/ball mill prices

1.wet ball mill Brief Introduction:
ball millgrinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.

2. wetball mill Working principle

This wetball millis a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
3. wetball mill prices Features

1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to different expelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you’re grinding is, and the time how long the ball mill runs.
10) Our Cement ball mill have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, and powder various chemicals.

4. wetball mill pricesSpecifications

Model	Speed of bucket (r/min)	Weight of ball	Size of feed opening(mm)	size of outputting feed (mm)	Production (t/h)	Power (kw)	Weight (T)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	475	56

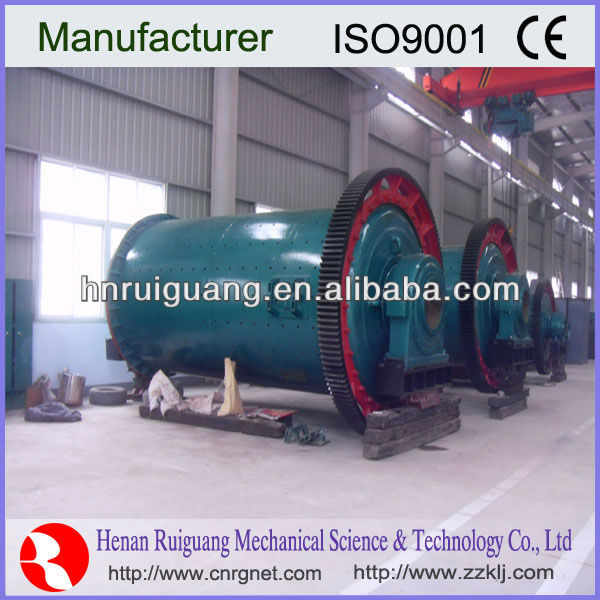

5. wet ball mill pictures

6.About Service

We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.

Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)

if you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.

Thank you for your reliance and support!
