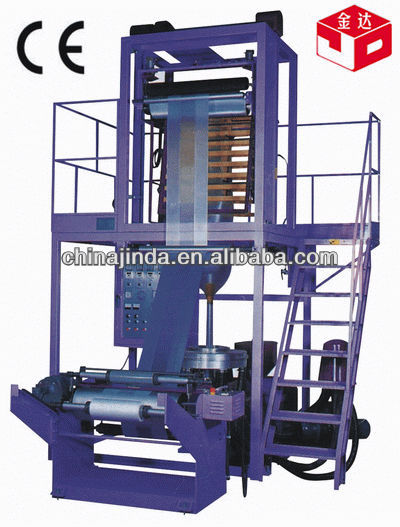

Ruian jinda PE film extruder

HDPE LDPE - details see: https://www.machineto.com/ruian-jinda-pe-film-extruder-10052959

Condition:New	Type:Other	Usage:Machinery & Hardware	Automatic Grade:Automatic
Place of Origin:Zhejiang China (Mainland)	Brand Name:jinda	Model Number:SJ50-700	Voltage:as required
Power(W):as required	Dimension(LWH):3.2x 1.7x 4.5	Weight:1.5 T	Certification:CE
COLOR:AS REQUIRED

blown film machine,film blown machine,film blowing machine,PE film blowing machine,plastic blown film machine

Technical Parameters:

Type	SJ-700	SJ-1100	SJ-1700	SJ-2200
Max.Layflat Widty mm	600	1000	1500	2000
Film Thichness mm	0.02-0.15	0.02-0.15	0.02-0.15	0.02-0.15
Output kg/h	≈35	≈65	≈85	≈100
Raw Material	LLDPLDPEHDPE
Screw Diameter mm	50	65	80	90
Screw L/D RatioL/D	28:1
Max.Screw Rotation Speed r/min	100	100	100	100
Extruder Driving Powerkw	11	18.5	30	37
Air Ring	Dual-lip Air Ring\Rorary Air Ring
Die Structure	Cylindrical Helical Die Core\360° Rotary Die Head
Max.Take-off or Wind-up Speedm/min	80	80	80	80
Total Powerkw	≈28	≈42	≈58	≈75
Overall Dimensions(L×W×H) M	4×1.8×3.6	5.8×2.2×6.0	6.5×2.7×6.0	8.2×3.2×8.8
WeightT	≈2.2	≈4.5	≈6	≈9
