1.Raymond mill, 2. Rollers:3 4 5 6 Ring:1, 3.Output:0.613-0.033mm, 4.Max.feeding size: 25mm, 5.Capacity:1-20 t/h - details see: https://www.machineto.com/raymond-mill-grinding-mill-for-sale-10314471

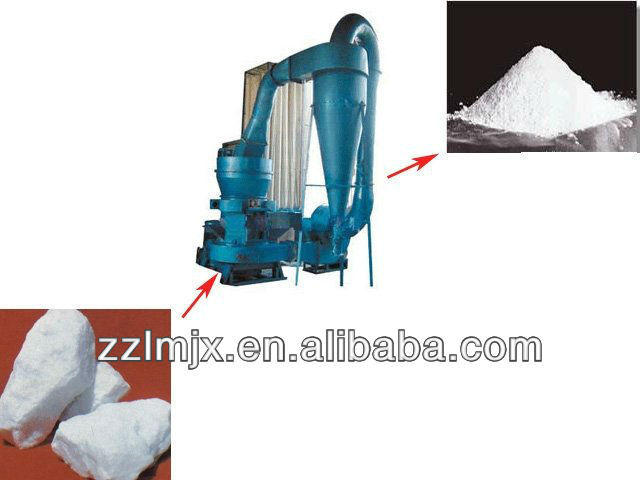

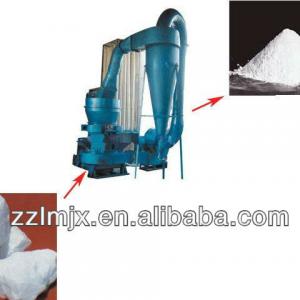

Raymond mill introduction

Raymond mill grinding mill for salewith innovative design is a new-typegrinding machine evolving from the original patented product of Zhengzhou LYE Machinery Co., Ltd.

Raymond mill grinding mill for saleFunction:
The machine is mainly used in processing powder of mineral materials of metallurgy, building materials, chemical industry, mining, etc. It can grind non-flammable and non-explosive materials with moisture less than 6% such as Feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese ore, iron ore, copper ore, phosphate rock, iron oxide red, slag, slag, activated carbon, dolomite, granite, iron oxide yellow, bean cake, chemical fertilizer, compound fertilizer, fly ash, bituminous coal, coke, lignite, Ling U.S. sand, gold, red mud, clay, Kaolin, coke, coal gangue, porcelain clay, kyanite, fluorspar, bentonite, muddy green rock, leaf wax rock, shale, purple rock, Diego rock, basalt, gypsum, graphite, insulation material, etc.

Raymond mill grinding mill for saleCharacteristics
T130X superfine grinding mill with innovative design is a new-type grinding machine evolving from the original patented product - TGM Super Pressure Trapezium Mill based on market research, feedbacks and suggestions of customers both at home and abroad. It's optimized on the foundation of TGM Super Pressure Trapezium Mill in function and structure, coming into being its own unique characteristics:


1.The main frame and the base are completely soft-linked rather than rigid-contacted. It avoids the vibration from the chamber transferring to the main frame and the classifier, which improving the precision of the classifier.
2. The base is made of anti-crack nodular cast iron which boasts the strength of cast steel, the anti-vibration of cast iron and good impact resistance.
3. It adopts the reducer that simulates German Flender. Technological advantages of professional reducer manufacturers are made full use of to improve machine stability. Reducer and motor are connected by V-belt which is conducive to overload protection.

4. The main frame and reducer are connected by pin coupling with elastic sleeve to ward off the breaking of nylon pin, which improves the reliability of the whole equipment.

5. The classifier adopts high density impeller which can improve the fineness and capacity. Practice shows that in the case of constant speed, increasing the density of leaves can increase the fineness of the finished product. In other words, in the condition of same fineness, the high-density impeller rotates slower than the low-density one, which reduces the air resistance and increases production meanwhile.
6.The classifier adopts frequency control of motor speed with the characteristics of energy-saving, precise, good process control mobility and high degree of automation.

7.Bypass powder collector with a dust isolation chamber make more dust go into the bottom of cyclone by the bypass system to avoid the dust escaping from air vents. Compared with general powder collector, it has the character of low pressure loss and high efficiency, particularly being conducive to collect the powder particles, which is difficult to collect.

8. Same resistance arrangement avoids difference in power from two powder collector, which increases the efficiency, capacity and decreases internal circulation.
9. The discharges of the collector and dust remover are in the same line which is convenient for powder collecting and packing and reduces the amount of work.

10. The maintenance platform makes maintenance work safer and more convenient.


Raymond mill grinding mill for salePRINCIPAL:
Large materials are crushed by jaw crusher into required size for mainframe, then the crushed materials are elevated to the hopper by bucket elevator, then to the grinding chamber for grinding by vibrating feeder evenly and continuously. The powder goes upwards with the airflow, after separating by the classifier, those which can meet the fineness requirement enters into the collector through pipes for separating and collecting, and discharged from the discharged valve as finished products. The airflow is sucked into blower through wind recycling pipe at the upper part of cyclone power collector. And the closed airflow circulation system with negative pressure ensures the environmental health of production line site.

Raymond mill grinding mill for sale

Model	YGM7826	YGM8327	YGM9531	YGM3220
Number of rollers(pcs)	3	3	4	3	4
Diameter of rollers(mm)	260	270	310	320	320
Internal diameter of ring(mm)	780	830	950	970	970
Rotational speed of main unit(r/min)	160	140	130	148	130
Max. feeding size(mm)	20	20	25	20-25	20-25
Capacity(kg/h)	25-500	30-680	150-1000	2000-5800	2000-6000
Motor of the main unit(power)	Y225M-8-18.5	Y225M-8-22	Y225S-4-37	Y225S-4-45
Motor of the blower(power)	Y160L-4-15	Y180M-4-18.5	Y200L-4-30	Y200L-4-37
Motor of the classifier(power)	Y160M-6-7.5	Y160M-6-7.5	Y160M-6-7.5	YCT200-4A-11
Total power(kw)	41	48	74.5	93
Overall dimension(m)	4.5×4.2×5.1	5.3×4.1×5.2	7.1×5.9×7.9	7.1*5.9*7.9
Weight(T)	4.8	6	11.5	13.2
Diameter of final particle(mesh)	500 mesh to 1250 mesh, the finest can reach 2500 mesh.			20-425 mesh, the finest can reach 1000 mesh.

Raymond mill delivery site pictures:

Raymond mill rollers:

Raymond mill workshop:

Raymond mill warehouse:

How is the quality of your products?

Our products are manufactured strictly according to national and international standard,

and we take a test on every grinder before delivered out. If you want see our quality certifications

and all kinds of testing report, please just ask us for it.

Guaranteed:

If products’ quality don’t accord to description as we give or the promise before you place order,

We promise 100% refund.

How about price?

Yes, we are factory and be able to give you lowest price below market one,

and we have a policy that “ for saving time and absolutely honest business attitude,

we quote as lowest as possible for any customer, and discount can be given according to quantity”,

if you like bargain and factory price is not low enough as you think, just don’t waste your time.

Please trust the quotation we would give you, it is professional one.

Why should we choose you?

Chose happens because of quality, then price, we can give you both

Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.

Our service formula: good quality+good price+good service=customer’s trust

Payment & shipping terms:

1.Price:FOB USD 1000-90000/set(negotiation)

2.Minimum Order Quanlity(MOQ):

3.Port:Shanghai;qingdao,(negotiation)

4.Packaging Details:Standard Container, Nude Packs or in Bulk.

5.Delivery Time:15-30 days

6.Payment Terms:L/C,T/T

7.Supply Ability:25-35 set per Month
