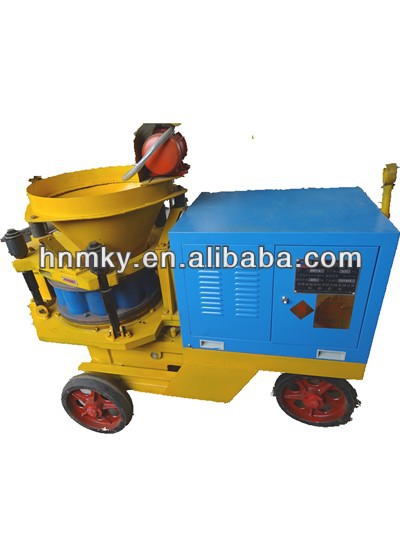

PZC9I mining machine mortar spraying pump

mortar spraying pump, 1.convenient, 2.high efficency, energy savable, 3.anti-explosion, 4.samll size,movable - details see: https://www.machineto.com/pzc9i-mining-machine-mortar-spraying-pump-10093227

Condition:New	Power Type:Electric	Place of Origin:Henan China (Mainland)	Brand Name:Keming
Model Number:PZC9I	Certification:ISO9001	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas
Color:Yellow	Capacity:7-9 m3/h	Conveying distance(level / vertical ):20/30 m	Suitable water cement ratio:>0.4
Max. Aggregate size:20mm	Inner diameter of feed delivery pipe:51mm/64mm	Wind working pressure:0.2-0.4Mpa	Gas consumption:12 m3/h
Motor power:7.5 kW	Voltage grade:380v or 660v

PZC9I mining machine mortar spraying pump

Feature

convenient
high efficency, energy savable
anti-explosion
samll size,movable
capacity is 7-9 m³/h, more capacity than usual nonexplosive concrete spraying machine
suitable of mining work because it is nonexplosive concrete spraying machine
Henan Coal Scientific Research Institute Co., Ltd. is a powerful company with a long history of 33 years. And it brings up many perfect talents, some of them open their companies and go on to cooperate with us. They are very greatful to their mother company.
we are a big and open company. Welcome you from all over the world to have a visit and cooperate with us.

Technical parameter

Capacity	7—9m³/h
Max. conveying distance( level / vertical )	100m/30m
Suitable water cement ratio Suitable water cement ratio	>0.20
Max. Aggregate size	<20mm
Inner diameter of feed delivery pipe	51mm/64mm
Wind working pressure	0.2—0.4Mpa
Gas consumption	12m³/min
Motor power	7.5kw
Voltage grade	380v or660v
Gauge	600m/900m
Dimension	15208201200(mm)
Weight	900kg

Company profile

Henan Research Institute of Coal Science Co., Ltd established in March of 1979. At the beginning of its creation, it is a memberof National Ministry of Coal Industry, mainly bears ministry and provincial scientific research projects. Over the years, it undertakes over one hundred projects authorized by original coal industry, Henan science and technology commission and coal enterprises bid inviting and it made scientific and technological achievements more than 90 items, won 45 awards, fulfilled technical consulting service over 110 items and more than 10 items of patent awards. In 1999, according to the deployment of national scientific research system reform, the original Henan Research Institute of Coal Science, listed as one of the national first batch of 242 enterprising science research institutes is delegated to Henan province with apanage management.

Keming Mechanical & Electric Department directly subordinate to Henan Research Institute of Coal Science expands from a pilot plant supported by abundant scientific research strength of Henan Research Institute of Coal Science. Now it develops into a leading enterprise in the industry of concrete spraying machine and is formed by concrete spraying machine as the main body of series of diversified products. It owes high reputation in society with high quality and technology.
