Portal Crane Chinese Famous brand

*ISO and CE Standard., *High Working Efficiency., *OEM Service., *Portal Crane - details see: //www.machineto.com/portal-crane-chinese-famous-brand-10102760
Feature:Portal CraneCondition:NewApplication:WidelyRated Loading Capacity:40t
Max. Lifting Load:40tMax. Lifting Height:32mSpan:10.5mPlace of Origin:Shanghai China (Mainland)
Brand Name:ZAONEEModel Number:MQ4032-SPortal:CraneContainer:Crane
Jib:CranePort:CraneWharf:CraneMachine:Crane
Portal Crane Chinese Famous brand
contact supplier for Portal Crane Chinese Famous brand

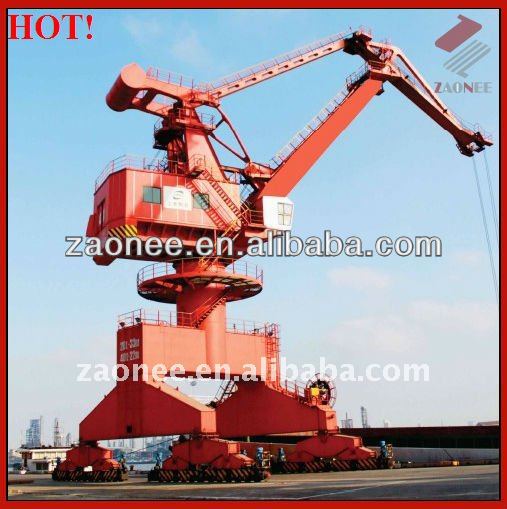

MQ4032-S model Potal Crane is mobile the entire rotation, four-link Arm, live on the re-balancing lever, cylindrical body of the door frame, container, hook, grab operation of multi-purpose portal crane .

This machine uses AC frequency control, PLC control, and fitted with intelligent all Chinese state monitoring system.

This model is a comprehensive multi-cargo port terminals in the ideal model species. Look beautiful, safe and reliable, high performance, easy maintenance, durable, can be used in inland and coastal port handling operations.

MQ4032-S crane hoist main performance parameters

Hoist CapacityHanging

hook task

25t

33t

40t

Working max wind speed

250N/m²
Working radiusmin/max10-33m

10-27m

10-24m

Out working max. Wheel Base

55m/s
Above the Surface of TrackUp track

/down track

28m/15m

Working max. Wheel Base

210kN

mechanism

Working radius

Hoist Speed

30(40t)m/min,40(25t)m/min

Max tail Turning Radius

7.76m
Derricking Speed

30m/min

Whole max height

48.864m
Slewing Speed

1.0r/min

Slewing bearing

131.50.3550
Traveling Speed

26m/min

Hoist steel-wire6w(19)-30-1700-I

mechanism

DutyRange

And motor

Hoist Speed

M7

YZB160MI-6×8

Traveling Wheel

The whole number of Traveling Wheel40
Derricking Speed

M6

YZB160MI-6×8

Number of Driving Wheel24
Slewing Speed

M7

YZB160MI-6×8

The diameter of wheelΦ550mm
Traveling Speed

M4

YZB160MI-6×8

Track model

QU70
Whole machine

A7

414KW

power

AC380v 50HZ
Wheel base/track

12m/10.5m

Total quality

405t
Packaging Detail:Electricals are packed by high quality plywood box,beams and others are packed by plastic woven cloth.
Delivery Detail:Within 180 days after receiving the deposit.
