1) ISO9001, ISO14001, 2) Auto welding, 3) Life more than 6 years, 4) Lifelong maintenance, 5) Pollution-free & Alarm system - details see: https://www.machineto.com/pollution-free-waste-plastic-pyrolysis-plant-with-advanced-technology-popular-around-the-world-10340194

The followings are detailed information of our pyrolysis equipments. After reading it, if there are still some questions, please consult me.

Linyi Lanshan Wharbo Machinery Manufacture Co., Ltd

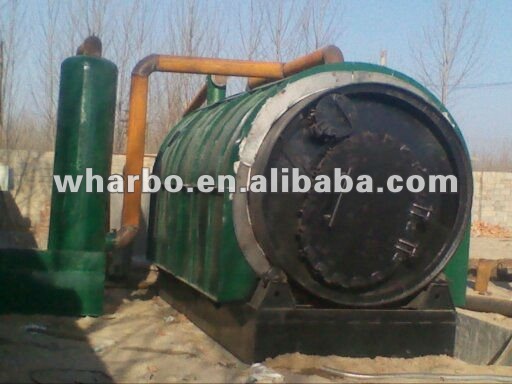

simulated diagram :

Quick Details:

Place of Origin:	Shandong(Mainland)	Brand Name:	Wharbo	Model Number:	LJ2800-6600
Type:	pyrolysis machine	Raw material:	Q245R & Q345R boiler plate	Size:	2800mm*6600mm
Reactor thickness:	14mm & 16mm	Weight:	38000KG	Capactity:	12MT/D
Power:	17KW	End product:	oil&carbon black&steel wire	Delivery time:	15days
Oil percentage:	45%	Carbon black:	35%

Packaging & Delivery

Packaging Detail:	1*40FR(open container) 1*40HQ
Delivery Detail:	15-20 days

Specifications

1) ISO9001, ISO14001

2) Auto welding
3) Life more than 6 years
4) Lifelong maintenance
5) Pollution-free & Alarm system

1) The model and capacity:

NO.	Model	Reactor size	weight	volume	capacity	Note
1	LJ-2200-6600	2200*6600mm	29MT	25 M³	6 MT/Batch	3 batches 2days
2	LJ-2600-6600	2600*6600mm	34MT	35 M³	9 MT/Batch	1 batch 1 day
3	LJ-2800-6600	2800*6600mm	38MT	41 M³	12 MT/Batch	1 batch 1 day

2) Fuel

The fuel can be: fuel oil, heavy oil, coal, firewood.

3) End product percentage (for example: the raw material is tyre)

Fuel oil	Carbon black	Steel wire	Waste gas
45%	35%	10-12%	8-10%

4) Machine motor Power

NO.	Model	Speed reducer	Fan	Blowers	Oil pump	Water pump
1	LJ2200-6600	4KW	4KW	1KW	1.5KW	1.5KW
2	LJ2600-6600	5.5KW	7.5KW	1KW	1.5KW	1.5KW
3	LJ2800-6600	5.5KW	7.5KW	1KW	1.5KW	1.5KW

5) Containers:

NO.	Model	40HQ	40FR open container
1	LJ2200-6600	2	/
2	LJ2600-6600	1	1
3	LJ2800-6600

6) The machine installation

We will give the foundation drawings to buyer after making the order .we will send engineers when buyer gets the machine. The engineers mainly install the machine and train your workers.

7) The covering area of machine:

The machine itself covers 300 square meters (length 20M; Width 15M)

Add raw material stay, carbon black stay, big oil tank zone, workers rest room and simple office. And it at least covers 600-800 square meters.

8) How many workers does it need to operate machine:

4 workers are enough for one set machine.

9) Catalyst formula:

We will supply the catalyst formula after you order the machine; you can buy it at your local.

10) Delivery time:

We will deliver the machine within 15days after we get the advance payment (30% of the total amount).

11) Port (China):

Lianyungang port & Qingdao port & shanghai port & Ningbo port & Rizhao port
