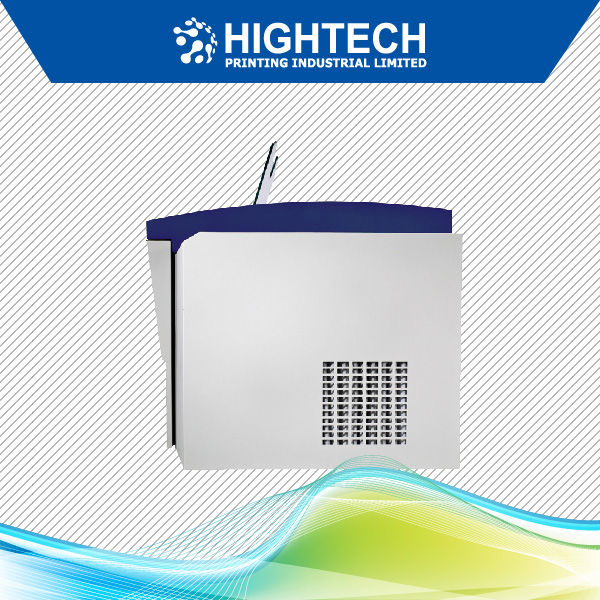

platesetter

platesetter, 1.Use Thermal plate, 2.Mature and reliable technology of 32-64channel discrete 830nm laser diode, 3.External drum - details see: http://www.machineto.com/platesetter-10072839
Condition:NewType:Plate SetterAutomatic Grade:AutomaticPlace of Origin:Beijing China (Mainland)
Brand Name:AMSKYModel Number:Ausetter 800 T SeriesVoltage:Single phase:200V-240VPower(W):Max power(Peak value):4KW
Dimension(L*W*H):2,530*1,050*950mmWeight:900KGWarranty:12 monthAfter-sales Service Provided:Engineers available to service machinery overseas
platesetter
contact supplier for platesetter


platesetter
ModeU832U848U864T832T848T864
Exposing Method

External Drum

Imaging System

32-channel48-channel64-channel32-channel48-channel64-channel

Discrete 400-410nm laser

Discrete 830nm laser

Output Speed

16 plates/hour22 plates/hour28 plates/hour16 plates/hour22 plates/hour28 plates/hour

1030*800mm 2,400dpi

Plate Size

Max.1130*900mm,Min. 400*300mm

Exposing Size

Max.1130*884mm,Min. 400*284mm

Media Type

UV plate, high-sensitive PS plate

Thermal plate

Plate Thickness

0.15mm~0.3mm

Resolutions

2,400dpi

Repeatability

±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C )

Interface

USB2.0

Plate Loading

First manual, then auto load

Net Weight

800KG

Size

1,900*1,200*1,000 mm(W*D*H)

Power supply

Single phase:200V-240V; Max power(Peak value):4KW

Environment

Recommended:21-25°CAllow:18-26°CHumidity:<70%

Use conventional plate
Use conventional plate is the lowest consumable cost at present moment.

Mature and reliable technology of 32-64channel discrete 405nm laser diode
The Ausetter 800 can produce extremely sharp and clear screen dots with the conventional plate ( long running life ).It is completely daylight operation and with a stable working life over several ten thousands hours.So it comes out more cost effective.

External drum design
Using the bend and clamp technology from the printing machines.It turns out good registration and quality dots with an increditable speed up to 29 (1030X800) plate per hour.

Autofocus
Our autofocus feature can keep constant distance between the laser and plate in real time mode. That is can eliminate error arise from any irregular surface of the plate during the plate production in turns can save a lots of material and time.

Unique screen control technology
With our precise dot compensation technology we can generate distinguishable gray scale between 1 to 99 %.

Easy operation
With highspeed USB2.0 interface. Ausetter 800 can easily install and operate like a printer with the plug and play technology.

platesetter

Packaging Detail:standard export packing
Delivery Detail:30 days after order confirmed
