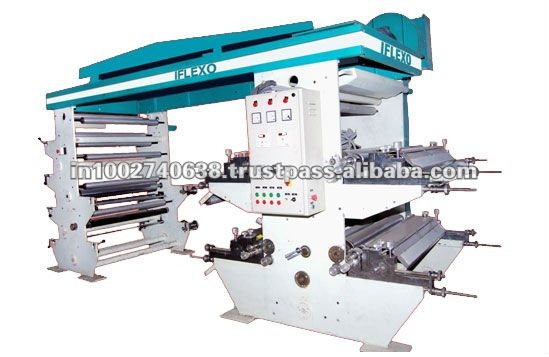

Perfect Registration Flexo Press

Flexo Printing Press, 1 Perfect Registration, 2 Uniform Impression, 3 Auto Stop for web break, 4 Reverse Printing - details see: https://www.machineto.com/perfect-registration-flexo-press-10066782
Type:Flexographic PrinterCondition:NewPlate Type:OtherPlace of Origin:Gujarat India
Brand Name:IFLEXOModel Number:Flexo Printing PressUsage:NON WOVENAutomatic Grade:Automatic
Color & Page:MulticolorGross Power:25Dimensions(L*W*H):17*8*12
Perfect Registration Flexo Press
contact supplier for Perfect Registration Flexo Press


Iflexo Printing machine for printing of non woven fabrics and bags available in two color, four color, six xolor and eight color. web width of 700 mm to 1200 mm. The machine has all rolleres digitally balanced, with Anilox roller for quality printing. neoprene rubber coated rubber roller and hardchrom presure roller.

Flexo Printing Press

2 Colors, 4 Colors, 6 Colors, 8 Colors for Printing on LDPE/LLDPE/HDPE/HM HDPE, BOPP,PP and Polyester Films/Paper

Description2 Color4 Color6 Color8 Color
Model No.IF 2220IF 4420IF 6620IF 8820
Dimensions in FtsLength X Width X Height13 X 6 X715 X 6 X 916 X 6 X 1020 X 8 X 15
Web Width14”- 20”- 26”-32”- 42”14”- 20”- 26”-32”- 42”14”- 20”- 26”-32”- 42”14”- 20”- 26”-32”- 42”
Printing Width12”- 18”- 24”- 30”- 40”12”- 18”- 24”- 30”- 40”12”- 18”- 24”- 30”- 40”12”- 18”- 24”- 30”- 40”
Print Repeat8” to 36”8” to 36”8” to 36”8” to 36”
Max. Reel Dia30”30”30”30”
Printing Speed up to70 Meter Per Minute70 Meter Per Minute70 Meter Per Minute70 Meter Per Minute
POWER REQUIREMENTS
Main Drive A.C
Blower A.C. Motor
Web Aligner A.C. Motor
Winder Motor
Heating Load
3 HP
2 HP
0.5Hp

4 HP
6KW
3 HP
4 HP
0.5Hp

4 HP
12 KW
5 HP
6 HP
0.5Hp

4 HP
18 KW
7.5 HP
8 HP
0.5Hp

4 HP
24 KW
Printing Option:2, 1+14, 1+3, 2+26, 5+1, 2+4, 3+38, 1+7, 2+6, 3+5, 4+4
*Printing Speed Depends upon type of material and type of printing
Salient Features:
Printing on LDPE/LLDPE/HDPE/HM/PP and Polyester Films/Paper,
Perfect Registration
Uniform Impression
Double Winding and unwinding Stand
Reverse Printing arrangement
Auto Stop for web break
All rollers are dynamically balanced and hard chrome plated
Silent air drying system fitted with high velocity centrifugal fan
Optional Accessories
Online slitting & trimming Assembly
Web guide
Tension Controller
Extra re-winder
Ink Circulation Pump
Synchronised Three Motor Drive System
Chambered Doctor Blade
Pneumatic Air Shafts
Perfect Registration Flexo Press
Packaging Detail:Wooden Box, Can be customized as per buyer requirement
Delivery Detail:Usually dispatched within 6 to 8 weeks
