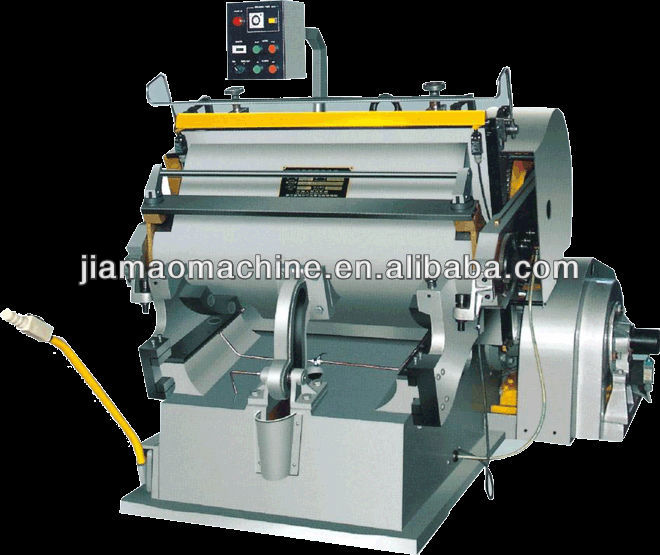

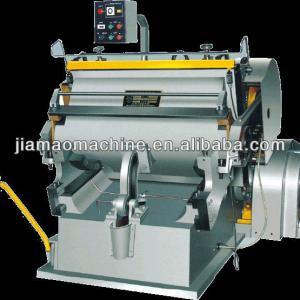

Paperboard and cardboard creasing and cutting machine

Specifications, Diecutting and creasing machine is special equipment for creasing and cutting ordinary cardboard, corrugated boa - details see: https://www.machineto.com/paperboard-and-cardboard-creasing-and-cutting-machine-10333054

Condition:New	Type:Die-cutting Machine	Computerized:Yes	Place of Origin:Zhejiang China (Mainland)
Brand Name:JIAMAO	Model Number:ML1300/1400/1500	Voltage:380v	Power(W):5.5kw
Dimension(LWH):2050x2300x1800mm	Weight:5600kg

Paperboard and cardboard creasing and cutting machine

contact supplier for Paperboard and cardboard creasing and cutting machine

Specifications

1.diecutting and creasing.
2.for courrgated board plastic leather.
3.compact structure.
4.paper machinery.
5.high precis

Machine Details

High strenth due to one piece casting by using top quality materials for machine body.

Smooth running, big pressure and low noise are obviously remarked as 4 step helical gear mechanism is adopted

Single plate electromagnetic clutch is sensitive subreliable.

Operational altitude is reasonably arranged, moving-bed opens to its optimum.

Electrical system is designed in conformity with IEC standard.

Single, continuous operation and opening dwell. The range is adjustable.

Safty system is really reliable.

Concentrated lubricating system.diecutting and creasing.for courrgated board plastic leather.
compact structure.semi-automatic.high precise.

diecutting and creasing.for courrgated board plastic leather.compact structure.paper machinery.high precise.

1.diecutting and creasing.
2.for courrgated board plastic leather.
3.compact structure.
4.paper machinery.
5.high precise.

Main Technical

Model	Inner Chase Size	Speed	Max.Rule Length	Motor Power	Machine Weight	Packing (overall) Dimensions
ML750	750*520mm	25±2	<15m	2.2kw	1700kg	178015901450mm
ML930	930*670mm	23±2	<25m	4kw	3000kg	167016701630mm
ML1100	1100*800mm	20±2	<30m	4kw	4500kg	190017801700mm
ML1200	1200*830mm	18±2	<32m	4kw	4000kg	202020201950mm
ML1300	1300*920mm	18±2	<38m	5.5kw	6500kg	192021401800mm
ML1400	1400*1000mm	17±2	<38m	5.5kw	7200kg	210024001930mm
ML1500	1500*1050mm	14±2	<40m	5.5kw	8500kg	201024801960mm
ML1600	1600*1250mm	16±2	<43m	11kw	11500kg	217025602230mm
ML1700	1700*1400mm	16±2	<50m	11kw	14500kg	224028002130mm
ML1800	1800*1280mm	16±2	<50m	11kw	14200kg	218027602250mm
ML1800A	1800*1400mm	16±2	<52m	11kw	15500kg	224028002130mm
ML2000	2000*1400mm	16±2	<58m	11kw	15500kg	227031002150mm
ML2500	2500*1400mm	13±2	<75m	18.5kw	19000kg	230036002150mm
