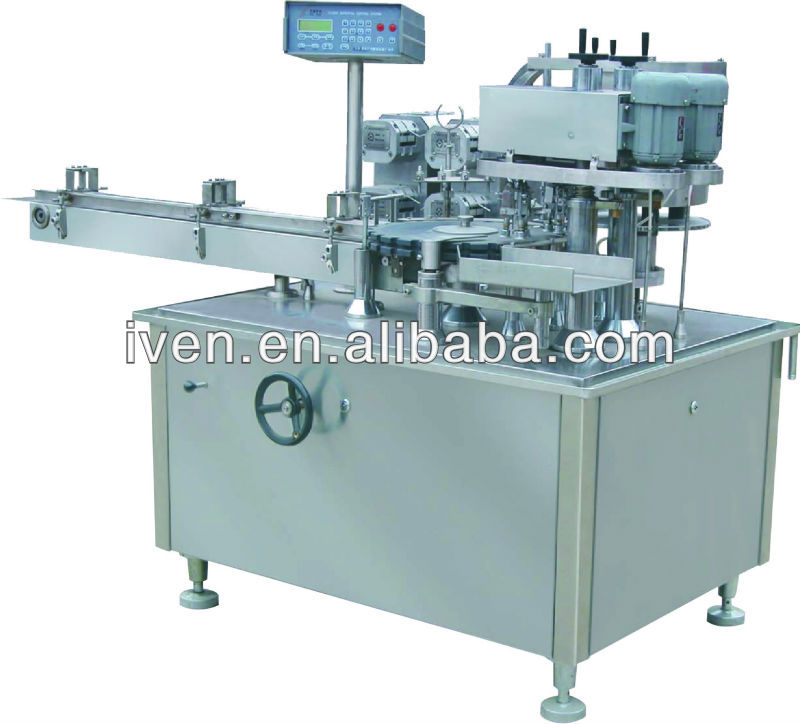

Oral Liquid Filling and Capping Machine

Oral Liquid Filling and Capping Machine, oral liquid filling, microcomputer control, 5ml-100ml bottle; 100-120 bottle/min, GMP - details see: https://www.machineto.com/oral-liquid-filling-and-capping-machine-10054741

Type:Capping Machine,Filling Machine	Condition:New	Application:Medical,Machinery & Hardware,Oral Liquid Filling and Capping Machine	Driven Type:Electric
Automatic Grade:Automatic	Power:2.4kw	Packaging Type:Bottles	Packaging Material:Plastic
Place of Origin:Jiangsu China (Mainland)	Brand Name:suxin	Model Number:YGRZ-D	Dimension(LWH):2300x1300x1600mm
Weight:Oral Liquid Filling and Capping Machine	Certification:GMP/CE	After-sales Service Provided:Engineers available to service machinery overseas	Suitable sizes:5-25ml oral liquid bottle
Output:6000-19200 pcs/h	Filling heads:15	Capping heads:18

Characteristics:

This machine adopts method of conveying bottles through big starwheel, to-and-fro tracking filling and three knives capping. It can automatically finish procedures such as bottle orienting, bottles conveying, filling, cap orienting, capping and etc. It can be equipped with glass pump, metal pump, ceramic pump or peristaltic pump as customer's request.

Technical Parameters:

Type	Suitable sizes	Output	Filling heads	Capping heads	Power	Net weight	Overall dimensions
YGZ15/25	5-25ml oral liquid bottle	6000-19200 pcs/h	15	18	2.4kw	1300kg	2715×1270×1600mm
YGZ12/25-B	5-25ml oral liquid bottle	6000-16200 pcs/h	12	12	2.4kw	1100kg	2300×1300×1600mm
