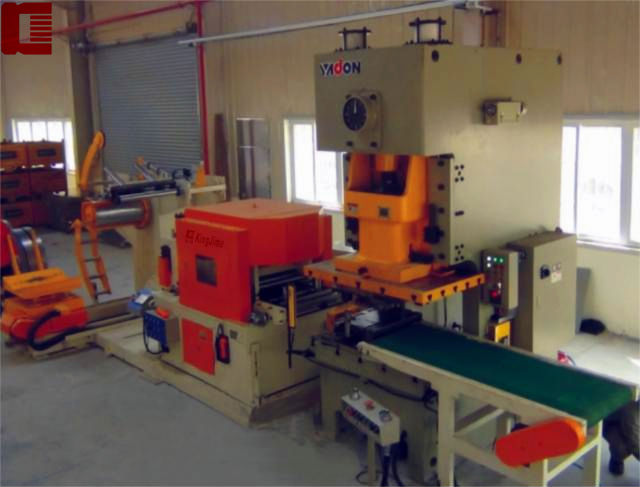

NC servo Straightener for Press, 1,decoiler:, 2,Straightener, 3,feeder, 4,nc servo motor,Drive - details see: https://www.machineto.com/nc-servo-straightener-for-press-10133060

The nc servo Straightener for Press

Standard Accessory
1.upper roller adjustment by digital watch .
2.Coil width adjusted by double handle wheel with precise screw rod .
3.Pass line can be adjusted by the lifter driven by motor .
4.Coil side guide use one set hollow rolls mechanical back gauge device.
5. Pinch roll and straightener roll material:high-strength alloy bearing steel with hard chrome plating.
6.Hydraulic coil arm device .
7.Motorized Snuber roll.
8.hydraulic guider .
9.hydraulic peeler table .
10.Mitsubishi PLC control feeding program from Japan .
11.Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer .

standard type
Ltem / Model	TNCF6-400		TNCF6-500		TNCF6-600		TNCF6-700	TNCF6-800	TNCF6-1000	TNCF6-1300	TNCF6-1500
Width of Material(mm)	75-400		75-500		75-600		75-700	75-800	75-1000	75-1300	75-1500
Thickness of Material(mm)	0.8-8
Max.coil Weight(kg)	3T weight can be customized						5T weight can be customized			8T weight can be customized
Coil L.D.(mm)	508
Max.Coil O.D.(mm)	1500
Max.Speed(m/min)	16
Feed Pitch Accuracy(mm)	±0.15
Feed ROLL	Upper1 / Lower1
Straighten ROLL	Upper4 / Lower3
Voltage	380VAc / 60Hz
Air power supply	5kg / CM²
Uncoiler Expansion	Hydraulic
Servo Motor(kw)	AC4.4KW with servo reducer				AC5.5KW with servo reducer				AC7.5KW with servo reducer
Uncoiler Motor(kw)	1.5 KW						2.2 KW			3 KW
Coil Car	optional									standard
Pass line	±100 MM
Straightener adjustment
Model/Width/Thickness	0.8	2.0	2.5	3.0	4.0	5.0	6.0	7.0	8.0
TNCF6-400	1 400						300	280	220
TNCF6-500	1 500						350	280	220
TNCF6-600	1 600					450	350	280	220
TNCF6-700	1 700				550	450	350	280	220
TNCF6-800	1 800				550	450	350	280	220
TNCF6-1000	11000			800	600	450	350	280	220
TNCF6-1300	11300		1000	800	600	450	350	280	220
TNCF6-1500	11500		1000	800	600	450	350	280	220

Packing:
Wooden case
