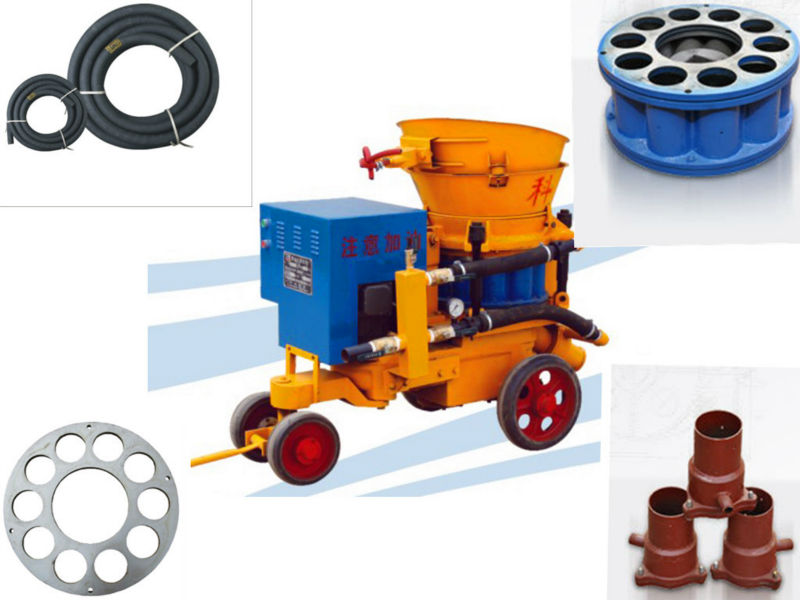

multifunctional PZ-5-1 Dry Shotcrete Machine

PZ-5-1 Dry Shotcrete Machine For Sale, 1.widely used in constructions, 2.mining equipment, 3.various types, 4.durable,fine quali - details see: https://www.machineto.com/multifunctional-pz-5-1-dry-shotcrete-machine-10095902
Condition:NewMax. Conveying Distance:200/40mMax Aggregate Size:15mmHose Inner Diameter:51 mm
Air Consumption:7-8m3per minPlace of Origin:Henan China (Mainland)Brand Name:KemingModel Number:pz-5-1
Voltage:380v/660v or 660v/1140vPower(W):7.5kwDimension(L*W*H):1520*820*1280mmCertification:iso
Warranty:1yearAfter-sales Service Provided:Engineers available to service machinery overseas
multifunctional PZ-5-1 Dry Shotcrete Machine
contact supplier for multifunctional PZ-5-1 Dry Shotcrete Machine


Advantages :
1.PZ-5-1 Dry Shotcrete Machineis widely used in constructions.
2.mining equipment
3.various typesofPZ-5-1 Dry Shotcrete Machine
4.durable,fine quality&property

5.reasonable pricePZ-5-1 Dry Shotcrete Machine

6.Fumigation-free wooden cases for package

7.short delievery time

8.easy payment terms: T/T or L/C

9.ISO certification

10.numerous customers all over the world

The spray Gunof PZ-5-1 Dry Shotcrete Machine
The design philosophy has been to bring to the market a complete system based on decorative decor manufacture. Our spray head has been tailored to meet this market.Every effort was made to develop the smallest profile pracitcal and to bring all the service channels into the gun in such a way as to allow for a naturally unhindered flexibility for the operator as well as allow for the Spray Head to operate freely inside restricted enviroments like a closed mold .

All the service connectors ofPZ-5-1 Dry Shotcrete Machineare miniature snap on air fittings which allows easy separation for cleaning and maintenance and adds minimum weight. All service hosingofPZ-5-1 Dry Shotcrete Machineis 51mm ID highly flexible polyurethane tubing to provide the minimum resistance to the operator.

Technical parameter:

Capacity5-5.5m³/h
Conveying distance(level / vertical )200/40m
Suitable water cement ratio1: 3-5
Max. Aggregate size20mm
Inner diameter of feed delivery pipe51mm
Rated working pressure0.2-0.4Mpa
Gas consumption7-8m³/min
Motor power5.5kw
Voltage grade380v/660v
Machine track gauge600/900mm
Dimension1520*820*1280mm

Company profile:

Henan Research Institute of Coal Science Co., Ltd established in March of 1979. At the beginning of its creation, it is a

member of National Ministry of Coal Industry, mainly bears ministry and provincial scientific research projects. Over

the years, it undertakes over one hundred projects authorized by original coal industry, Henan science and technology

commission and coal enterprises bid inviting and it made scientific and technological achievements more than 90

items, won 45 awards, fulfilled technical consulting service over 110 items and more than 10 items of patent awards.

In 1999, according to the deployment of national scientific research system reform, the original Henan Research

Institute of Coal Science, listed as one of the national first batch of 242 enterprising science research institutes is

delegated to Henan province with apanage management.

Keming Mechanical & Electric Department directly subordinate to Henan Research Institute of Coal Science expands

from a pilot plant supported by abundant scientific research strength of Henan Research Institute of Coal Science.

Now it develops into a leading enterprise in the industry of concrete spraying machine and is formed by concrete

spraying machine as the main body of series of diversified products. It owes high reputation in society with high quality

and technology.

Contact us:

Websitehttp://hnmky.en.alibaba.com
Tel.86-371-67836512
Fax86-371-63930764
Postcode450001
MSNmky-keming
Add.NO. 17 Fengyang Street, Zhengzhou City, Henan Province

multifunctional PZ-5-1 Dry Shotcrete Machine
Packaging Detail:fumigation-free wooden cases
Delivery Detail:7-15 days after execution of contract
