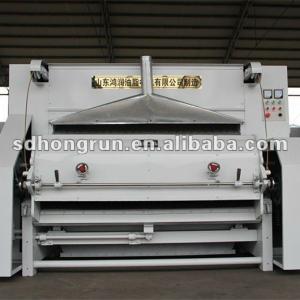

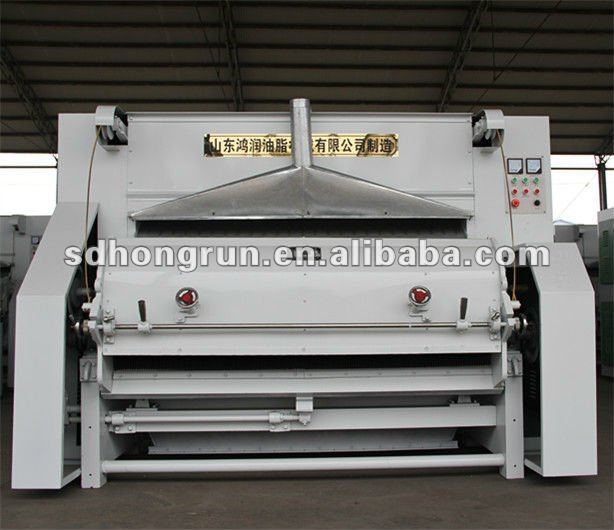

MR-144C sawtooth linter for cottonseed process

MR-144C sawtooth linter for cottonseed process:, 1. strip the fuzz from gross cotton seed, 2. low power consumption, high output - details see: http://www.machineto.com/mr-144c-sawtooth-linter-for-cottonseed-process-10279683
Condition:NewType:CottonPlace of Origin:Shandong China (Mainland)Brand Name:LuMian
Model Number:MR-144C sawtooth linterVoltage:380VPower(W):38.5kwWeight:2 Ton,2t
Certification:ISO9001Warranty:1 YearAfter-sales Service Provided:Engineers available to service machinery overseasProduct:MR-144C sawtooth linter for cottonseed process
Function:strip the lint from gross cotton seedPower equipped:24.35KWOverall dimension:2500*1800*1900(mm)The first process capacity:3500-4500(kg/h)
The second process capacity:1000-1500(kg/h)The third process capacity:750-1000(kg/h)
MR-144C sawtooth linter for cottonseed process
contact supplier for MR-144C sawtooth linter for cottonseed process


MR-144C sawtooth linter for cottonseed process

1. MR-144C sawtooth linter for cottonseed process is used tostrip the lint from gross cotton seed.

2. We adopt new technology, new process and new material to make the work property improve effectively, especially highlight its obvious advantages for the auto control cabinet and production efficiency .

3. MR-144C sawtooth linter for cottonseed process can be divided into three specifications separately used to strip the 1st, 2nd and 3rd cut lint; the 2nd and 3rd belong to air-flow type.

4. MR-144C sawtooth linter for cottonseed process can be used as matching equipment with other cotton ginning machine ( the match ratio depends on the actual requirements)

1. Main technical parameters

MR-144C

Process capacity (kg/h)
The first process capacity3500-4500
The second process capacity1000-1500
The third process capacity750-1000
Lint output ratio (%)
The first lint output ratio1-1.5
The second lint output ratio4-6
The third lint output ratio2.5-3.5
Short-time lint output (kg)
The first short-time lint output0.29
The second short-time lint output0.35
The third short-time lint output0.21

2. Main technical parameters

MR-144 C

Roller of saw-blade(φ280-φ320)×1588.73(mm)

The first of the tooth-shape angle of saw blade is40°, the second and the third is

28°( tooth height 5-5.5mm)

Saw-blade number144 pcs
Saw-blade interval11.11mm
Max. frame inclination28-30°
Discharge-strip clearance2.8-3(mm)
Blowing-rate at lint outlet1.5-1.6 m3/s(non-load)
Wind-speed at lint outlet19-20 m/s(non-load)
Power equipped24.35 KW
Overall dimension2500×1800×1900(mm)
Weight2t

3. MR-144C sawtooth linter for cottonseed process Motor model

Y160L-4 15KW Y132M-4 7.5KW

Y90S-4 1.1KW Y80M2-4 0.75KW

Raw material(ginned cottonseed) → MR-144C sawtooth linter for cottonseed process → delinted cottonseed

Packaging Detail:Standard export package
Delivery Detail:20 days after down payment
